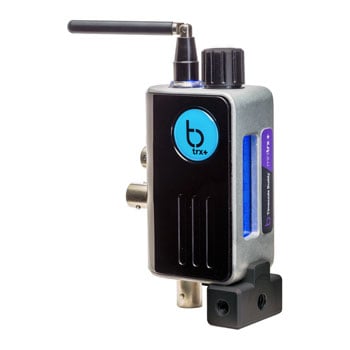

Product Overview Super compact and incredibly versatile, the :mini trx+ timecode generator works just as well on a DSLR as a more traditional large scale film and broadcast

A simple, cost-efficient multi-camera sync solution
Small and offering multiple mounting options, the :mini trx+ is suitable for use on everything from a large-scale film camera to a DSLR. It’s the perfect timecode partner to a :wave or :pulse on a multi-camera shoot.

The :minitrx+ is the smallest timecode, genlock and word clock generator on the market, but it’s not just its proportions that make it stand out. As a BLINK enabled device, when used in combination with a :pulse or :wave, you can remotely view, monitor and control multiple :minitrx+ units from any smartphone, tablet or computer, making it a great solution for multi-camera shoots.

Ultra compact and lightweight
Measuring just 29mm x 44mm x 70mm and weighing only 138g, the :minitrx+ is perfectly proportioned to attach to any camera.

In addition, an aluminium anodised bracket connector block with multiple quarter-inch threaded mounting holes and a detachable hot-shoe mount allows for a solid and flexible mounting solution.

Enhanced features
Synchronisation between units is via BLINK RF – a wireless long-range sync, control and metadata exchange protocol operating in the uncongested range of 865MHz to 923MHz. This ensures complete reliability, wherever you are, and zero drift between units even on a long and complicated shoot day.

Use the :minitrx+ in conjunction with a :wave or :pulse to connect to the BLINK Hub app production dashboard. This unlocks the advanced capability to view, monitor and control multiple :minitrx+ units centrally from any smartphone (iOS or Android), tablet or computer.

More information can be found in the User Manual below:
Data Sheet Features • Ultra compact and lightweight
• Highly accurate and stable generator
• Long range RF transceiver
• B:LINK protocol enabled

• External dimensions: 29mm x 44mm x 70mm
• Weight: 138g
• LCD display: 2 line, 16 character, blue variable brightness backlit display
• Supported FPS modes: 23.98, 24, 25, 29.97, 30, 29.97DF, 30DF
• Antenna ‘halo’ Lightpipe: Bi-colour LED (Green/Red)
• T/C input: BNC connector
• Frequency: 865MHz-923MHz, Worldwide ISM bands.
• Power: Li-Polymer rechargeable battery, 10-12 hours min operation, 2 hours charge from the USB or Hirose power source
• T/C outputs: BNC connectors (selectable standard or mic level)
• Output sync modes: PAL, NTSC, 720p, 720p double frame, 1080i, 1080p, 1080p double frame, Word Clock 44.1, 48.2, 48, 96, 192 KHz
• Output video sync: 1V pp / 75 ohm or 1V pp /37.5ohm for ‘High Level Genlock’ mode (3D camera rigs)
