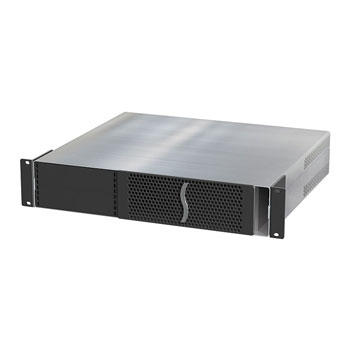

Sonnet Echo Express III-R Rackmount Thunderbolt 3 Edition PCIe Card Expansion System
to your specified address. |
Receive SMS with one-hour delivery window
Weekend, timed and European delivery options are available at checkout
Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery windowWeekend, timed and European delivery options are available at checkout
Collect from our Bolton store, BL6 6PE |
Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)
Protect against installation damage for 28 days.
ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.
Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.
For pros working in the creative fields, a computer’s processing power alone is not enough to get the job done. A prime example is the latest MacBook Pro®, which, while offering great performance, lacks the PCIe expansion slots necessary to support specialty cards that connect pro video and audio inputs, transcode data, and connect to high-speed storage and networks. Instead of slots, these computers include ultra high-performance Thunderbolt 3 ports to support peripherals. Sonnet’s Echo™ Express III-R - Thunderbolt 3 Edition leverages the Thunderbolt 3 ports’ PCIe data to connect PCIe expansion slots outside of a computer. This desktop Thunderbolt-to-PCIe card expansion chassis enables you to connect three professional PCIe cards—including video capture, audio interface, SAS or SATA HBA, 16Gb or 8Gb Fibre Channel, 10 Gigabit Ethernet, and RAID controllers—at the same time to any Mac with a Thunderbolt 3 port.
The Echo Express III-R - Thunderbolt 3 Edition features a 40Gbps Thunderbolt 3 interface, which offers double the PCIe bandwidth and connectivity of Thunderbolt 2, and yields up to 2750 MB/s of bandwidth, enabling it to support 4K video capture and processing cards at high frame rates, and 16Gb FC cards and dual-port 10GbE cards at full performance(1)(2). With the ability to handle multiple demanding, highest performance PCIe cards, support for connecting two 4K displays @ 60Hz or one 5K display @ 60Hz(3), and support for a vast array of Thunderbolt(4) and USB(5) devices, Thunderbolt 3 is a leap forward in every way.
Three PCIe 3.0 Slots, No Compromise
Sonnet’s Echo Express III-R - Thunderbolt 3 Edition supports three full-size PCIe cards, up to 12.28 inches (full-length) long. The III-R integrates a universal 300W power supply and includes a 75W PCIe power connector for cards that require supplementary power, such as the Avid® Pro Tools|HDX or the RED® ROCKET-X.
Even with all that power, the III-R is enviro-friendly; it automatically powers on or off whenever the connected computer powers on or wakes, or powers off or sleeps, respectively.
40Gbps Thunderbolt 3 - The USB C That Does It All
The Echo Express III-R - Thunderbolt 3 Edition includes two Thunderbolt 3 (USB-C) ports; the first is used for connection to your computer, while the second supports daisy chaining of up to five additional Thunderbolt peripheral devices to a single port on your computer(4). The III-R includes 10Gbps USB 3.1 Gen 2 support, meaning you can connect a USB device to the second port using the proper cable or adapter. The III-R also provides full support for connecting two 4K displays @ 60Hz or one 5K display @ 60Hz(3). For connected devices requiring extra power, 15 watts is provided to connected bus-powered devices.
All-Around Smart Design
The Echo Express III-R - Thunderbolt 3 Edition’s enclosure is formed of heavy-duty steel to provide secure mounting for the inner assembly and protection for the PCIe cards installed inside, and to support maximum airflow for cooling, regardless of where you install it in a rack.
Its two large, slow-spinning fans, enhanced with computer-modeled airflow management, ensure that even hot-running cards remain reliably cool without the need to install an extra PCIe blower card that would prevent the use of one of the three slots. Because the fans automatically speed up and slow down as needed, you don’t have to guess which speed setting to select, and there’s no need for tools to change settings. There is no power switch on the chassis, nor is one needed, because the III-R automatically powers on and off with your computer.
The III-R’s adjustable rackmount extension rails enable the chassis to be installed securely in a variety of racks from 16 to 24 inches deep (optional, extra-long extension rails that support installation in racks up to 32.5" deep are also available). Captive thumbscrews secure the inner assembly, enabling you to secure, release, and slide it out without the need of tools. Using an optional Mobile Rack Device Mounting Kit, you can install two 5.25-inch mobile rack devices (sold separately) in the III-R's enclosure without taking up additional rack space.
The Echo Express III-R - Thunderbolt 3 Edition’s operation is remarkably quiet—comfortably used in noise-sensitive environments, it is one of the quietest Echo systems. The natural convection of warm air through the PCIe cards is assisted by ultra-quiet, temperature-controlled, variable-speed fans, and vented out of the chassis with reduced air velocity and turbulence, resulting in little fan noise.
Every Thunderbolt 3 and MacOS Compatible PCIe Card Supported
The Echo Express III-D - Thunderbolt 3 Edition supports three single-width, full-length PCIe cards, or one double-width, full-length card plus one single-width card, enabling it to support every Thunderbolt 3- and macOS-compatible PCIe 1.1, PCIe 2.0, and PCIe 3.0 card available.
RED ROCKET Supporter
Sonnet designed the Echo Express III-R - Thunderbolt 3 Edition to accommodate the RED ROCKET or RED ROCKET-X and its BNC connector bracket (for HD-SDI output) card/bracket pair in a single slot. This Echo chassis includes two BNC connector mounting holes, enabling the installation of the card in one slot and its BNC connectors in the chassis’ mounting holes, leaving the two remaining slots open.
Designed for BNC Connector Cables
Echo Express III-R’s back panel has two BNC connector mounting holes, enabling the use of a RED ROCKET card without the need to install the BNC connector bracket that would normally occupy a valuable PCIe slot.
Thunderbolt 3 (40Gbps) Cable Included
To connect the Echo Express III-R - Thunderbolt 3 Edition to your computer, Sonnet includes a 1.0-meter Thunderbolt 3 (40Gbps) cable.
- 1. While the Echo Express III-R - Thunderbolt 3 Edition features a 40Gbps Thunderbolt 3 interface, some computers equipped with Thunderbolt 3 use an implementation of Thunderbolt 3 technology that limits PCIe performance to 20Gbps. The MacBook Pro (13-inch, Late 2016, Four Thunderbolt 3 Ports) has this limitation in the two right-hand Thunderbolt 3 ports, while offering full performance from the left-hand ports.
- 2. Full performance requires the use of the included Thunderbolt 3 (40Gbps) cable, or other Thunderbolt 3 (40Gbps) cables; look for the Thunderbolt icon AND the number 3 on the connector housings to identify these cables.
- 3. One 4K monitor directly supported. Two 4K monitors requires either a 4K monitor with multi-stream transport support (DP out), or a Thunderbolt 3-to-Dual DisplayPort adapter. 5K monitor requires a Thunderbolt 3-to-Dual DisplayPort adapter. All Thunderbolt 3 Macs support two 4K monitors. Most Thunderbolt PCs support two 4K monitors.
- 4. Second Thunderbolt 3 port supports Thunderbolt and Thunderbolt 2 peripheral devices on Macs used with the Apple Thunderbolt 3 (USB-C) to Thunderbolt 2 Adapter, sold separately.
- 5. Second Thunderbolt 3 port supports USB 3.1 Gen 1 (5Gb) or Gen 2 (10Gb) devices when connected with proper cable or adapter (sold separately). Features • Connects Three Full-Length PCIe Cards to any Mac® With Thunderbolt™ 3 Ports - Use multiple high-performance PCIe cards at the same time
• Three PCIe 3.0 Slots - Supports three full-height, single-width cards, or one double-width card plus one single-width card
• 40Gbps Thunderbolt 3 Interface - Offers 2750 MB/s of PCIe bandwidth, doubling the performance of Thunderbolt 2
• Two Thunderbolt 3 (USB-C) Ports - One port used to connect to the computer; second port supports daisy-chaining of up to five additional Thunderbolt peripheral devices to your computer, attaching a single USB peripheral device, or connecting up to two 4K displays or one 5K display
• Remarkably Quiet - Large, temperature-controlled, variable-speed fans that automatically cool the cards, plus computer-modeled design that reduces airflow turbulence and velocity, combine to provide quieter cooling for all cards
• Built-in Universal Power Supply - Integrated 300W power supply with 75W auxiliary power connector
• Rugged Aluminum Housing - Provides robust and secure protection
• Every Thunderbolt 3- and macOS-compatible Card Supported - Works with every Thunderbolt 3- and macOS compatible PCIe card, regardless of length or height
• 5-Year Warranty Included at No Extra Cost - No extra charge for a 5-year warranty
• Thunderbolt Cable Included - Includes 1.0-meter Thunderbolt 3 (40Gbps) cable
• Mac with Thunderbolt 3 ports
• Mac with a Thunderbolt 2 or Thunderbolt port with an Apple Thunderbolt 3 (USB C) to Thunderbolt 2 Adapter
• macOS 10.12+
