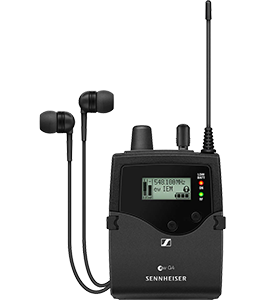

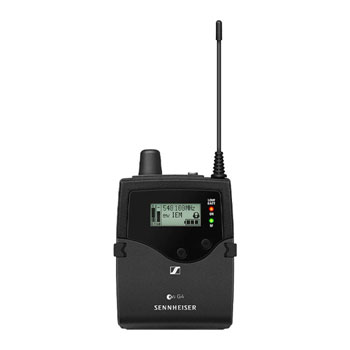

Sennheiser - 'EK IEM G4-E' Bodypack Receiver

Sennheiser - 'EK IEM G4-E' Bodypack Receiver, 823 - 865 MHz Freq. Range, Up to 42 MHz Bandwidth, Made In Germany

Thumbnail 1 : Sennheiser - 'EK IEM G4-E' Bodypack Receiver
Sennheiser - 'EK IEM G4-E' Bodypack Receiver : image 1
Scan code: LN115156 Manufacturer code: 507855
Order now and get it tomorrow, Tue 19th Oct
Delivery Options
  • By DPD On 19th Oct to your specified address. | Free Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Sennheiser - 'EK IEM G4-E'
Bodypack Receiver

sennheiser ek iem g4-gb

Unmatched Clarity & ReliabilityThe Sennheiser EK IEM G4-E is a robust bodypack receiver that delivers clarity across the entire frequency range. Perfect for daily use on stage with Sennheiser evolution wireless G4 In Ear Monitoring systems. Made in Germany, Sennheiser remain the industry leaders across the world for their renowned quality and reliability. These wireless systems will stand the test of time and provide consistently great performance with ease of use, creating a stress free experience. This bodypack receiver supports E: 823 - 865 MHz frequency range, be sure to check your frequency range to make sure this is the correct product for you.

±48 kHzPeak Deviation

823 - 865 MHzFrequency Range

≤ 0.9 %THD

Amazing Features • Robust bodypack receiver delivering clarity along the whole frequency spectrum for daily use on stage
• Up to 42 MHz bandwidth with 1680 selectable frequencies, fully tunable in a stable UHF range
• Compatible with Sennheiser WSM control software for flexible frequency allocation
• High RF output power (up to 50 mW) depending on country regulations
• Transmission Range: up to 100 meters / 300 feet
• Up to 16 compatible channels

The Tech Spec

Features Specification
Frequency range E: 823 - 865 MHz
Dimensions Approx. 82 x 64 x 24 mm
Compander Sennheiser HDX
THD, total harmonic distortion ≤ 0.9 %
Weight (incl. batteries) approx. 125 g
Signal-to-noise ratio approx. 90 dBA
Switching bandwidth up to 42 MHz
Peak deviation ±48 kHz
Nominal deviation ±24 kHz
Operating time approx. 4 to 6 hours (depending on volume level)
Modulation Wideband FM
Power supply 2 AA batteries, 1.5 V or BA 2015 accupack
Current consumption at nominal voltage: approx. 140 mA with transmitter switched off: ≤ 25 µA
Adjacent channel rejection Typically ≥ 65 dB
Audio-Output-Power 2 x 100 mW at 32 Ω
Intermodulation attenuation Typically ≥ 70 dB
Limiter –18 dB to –6 dB, adjustable in steps of 6 dB, can be switched off
Powering 3 V battery / 2.4 V rechargeable battery
Receiving frequency Max. 1680 frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 16 factory-preset channels, no intermodulation, 6 frequency banks with up to 16 programmable channels
RF sensitivity < 4 μV, typ. 1.6 μV for 52 dBA rms S/N
Squelch 5 to 25 dBµV, adjustable in steps of 2 dB
Bass Boost +8 dB at 8 kHz
Temperature Range -10 °C to +55 °C
Receiver Principle Adaptive diversity
Blocking ≥ 80 dB
Headphone Type
Driver Type
Headphone Connector Type
Includes Adaptor No
In-line Mic No
Detachable Cable No
Cable Length
Sensitivity None
Additional Information
Scan Code LN115156
Model Number 507855
