Scan code: LN110065 Manufacturer code: 64023

Magewell - 64023 Pro Convert HDMI Plus

Magewell - 64023 Pro Convert HDMI Plus, 2048x2160 120fps NDI Encoding, 297MHz HDMI Receiver

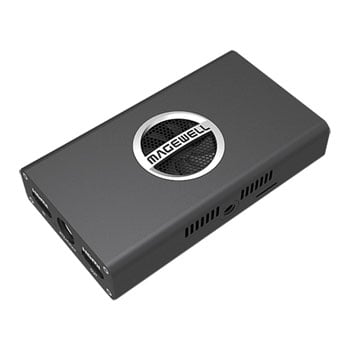

Thumbnail 1 : Magewell - 64023 Pro Convert HDMI Plus
Magewell - 64023 Pro Convert HDMI Plus : image 1
Scan code: LN110065 Manufacturer code: 64023
£534.49Item currently awaiting an ETA
Pre order
Delivery Options
  • By DPD to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

Magewell - '64053 Pro Convert HDMI TX'
One-Channel HD Signal Converter

Magewell - Pro Convert HDMI 4K Plus

Full BandwidthThe Magewell 64053 Pro Convert HDMI TX is a HDMI to full bandwidth NDI encoder with HDMI input for video up to 1080p60 and up to 8-ch embedded audio. Powered by POE or USB.

DC+5VPower Interface

Up to 2048x1200 60fpsNDI Encoding

Mini-DIN-8PTZ Interface

• Convert one channel of HDMI signal with embedded audio to NDI® stream

Magewell - Pro Convert HDMI 4K Plus

The Tech Spec

Features Specification
Supported Web Browsers (tested) Microsoft Internet Explorer 11
Microsoft Edge
Mozilla Firefox version 61 and above
Google Chrome version 49 and above
Apple Safari 11.1 and above
Opera 55.0.2994.44 and above
Supported Software (tested) OBS
XSplit
vMix
VidBlasterX
Wirecast
streamstar SW
mimoLive
Any other NewTek NDI-enabled encoding or streaming software
Input Interface HDMI: DVI-D 1.0, HDMI 1.4
Loop-through Interface HDMI: DVI-D 1.0, HDMI 1.4
Storage Interface SD Card (functions to be developed)
PTZ + TALLY Control Mini-DIN–8 jack
Screw Mounting Hole ¼–20 mounting hole
Network Interfaces 10/100/1000Mbps Ethernet
IEEE 802.3af PoE
USB Interface USB2.0 Type B
5V/2.1A power supply
USB RNDIS/ECM
Input feature Support for input video resolutions up to 4096x2160
HDMI Specific Features 297MHz HDMI receiver
Adaptive HDMI equalizer
Support for customized EDID
Support for extraction of AVI/Audio InfoFrames
Full colorimetry support
Support for up to 4096x2160 4:4:4/4:2:2 30fps or 4096x2160 4:2:0 60fps input signals
Support for 8 channel IEC60958 audio streams
Support for extraction of audio formation information & channel status data
Support for extraction of video timing information
Support for extraction of 3D format information
Support for Side-by-Side Half, Top-and-Bottom, Frame Packing 3D mode
NDI® Output Format Support for 4:2:2 8-bit output
Support for up to 2048x2160 120fps
Support for NDI 4.1
Video Processing Features Video processing pipelines with 160 Mpixels/s
Video brightness, contrast, saturation, hue adjustment
Video de-interlacing: Top & Bottom field only
Video aspect ratio conversion: Auto or manual selection of output aspect ratio
Video color format conversion: Auto or manual selection of input color format & quantization range, Auto or manual selection of output color format, quantization range & saturation range, Support for RGB, YUV BT.601, YUV BT.709, YUV BT.2020 input color formats, Support for YUV BT.601, YUV BT.709, YUV BT.2020 output color formats, Support for Limited or Full quantization range, Support for Limited, Full & ‘Extended gamut’ saturation range
Video frame rate conversion
Video mirror flip
NDI® Source Name Support for setting the device name shown in the system using Web UI. By default, the device name is ‘Pro Convert’.
Support for setting the source name shown in the system using Web UI. By default, the source name is ‘board-index + serial number’.
Support for setting board-index, from 0 to F, through on-board rotary switch.
Firmware Upgrade Support for manual update using Web UI
LED Indicator Status LEDs indicate: The state of power supply: on/off, Tally: preview/program, The state of input signal: locked/unlocked, The state of loopthrough signal: loopthrough connected and signal detected/undetected
Form Factor 117.5mm (L) x 66.7mm (W) x 23.4mm (H)
Accessories USB 2.0 A to B Cable
5V/2.1A power adaptor
Mini-DIN–8 (PTZ + TALLY) to RS232 (PTZ) + Mini-DIN–8 (TALLY)
L-bracket
LED matrix panel (optional)
Power Consumption 5V max current: ~1.5A
Max power consumption: ~8W
Working Environment Operating temperature: 0 to 45 deg C
Storage temperature: –20 to 70 deg C
Relative Humidity: 5% to 90% non-condensing
