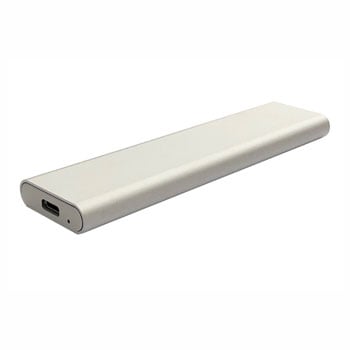

Lycom USB 3.1 Type-C to M.2 NVMe SSD External Exclosure

Lycom UB-151 USB 3.1 Type-C (Gen2 10GB/s) Enclosure for M.2 PCIe NVMe SSD Silver

Thumbnail 1 : Lycom USB 3.1 Type-C to M.2 NVMe SSD External Exclosure
Lycom USB 3.1 Type-C to M.2 NVMe SSD External Exclosure : image 1
Scan code: LN95893 Manufacturer code: UB-151
Order now and get it tomorrow (upgrade to Saturday delivery at checkout)
Delivery Options
  • By DPD On 2nd Aug to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Product Overview

Your M.2 Becomes Mobile

Bus powered on a PC & Mac with USB Type C, this external enclosure has an M-Key socket for most NVMe and ACHI SSDs sized: 22x30/42/60/80mm.

With the help of the external USB 3.1 Type-C™ enclosure UB-151 you can take one NVMe card with you quickly and easily.

USB Type-C™ Controller Based on NVMe

If you wanted to connect an external case with an M.2 SSD via USB Type-C™ in the past, you were limited to SATA models. The new chipset allows NVMe M.2 SSDs to be connected to a USB 3.1 (Gen 2) Type-C™ host computer and enables the full data transfer rate of up to 1000 MB per second.

It allows access to M.2 SSDs of up to 2 TB no matter to which host you connect it. Compatible with M.2 cards of 30, 42, 60 and 80mm length, operating system-independent and suitable for a variety of applications such as high-speed storage, cloning a drive or running a mobile operating system.

• 10Gbps Gen2 USB 3.1 Type-C upstream connector on board.
• Supports 10 Gbps, 5 Gbps, 480 Mbps transaction (GEN 2,1).
• Directly to USB 3.1 Host Port via Type-C cable.
• Supports PCIe Gen3 M.2 80mm, 60mm, 42mm NVMe SSD.
• M.2 NGFF type 2280-D5-M M Key socket on board.
• Movable M.2 NGFF stand-off and multiple plated-holes supports NVMe type 2280, 2260 and 2242 SSD.
• Supports dual-sided SSD module 1.5mm component height on the top and bottom side.
• Compliant with NVM Express 1.3.
• Compliant with USB 3.1 Gen 1 and Gen 2 Specification.
• Compliant with USB Attached SCSI Protocol (UASP) Specification (Revision 4).
• Supports USB2.0/USB 3.1 Gen1/ Gen2 power saving mode.
• PCBA and NVMe SSD powered by USB3.1 Type-C bus 5V.
• PCBA with aluminum case only, without NVMe M.2 SSD inside.
• Fully RoHS compliant.
• LED for power and access.
• Supports Windows®, macOS®.
Edition None
HDD Form-Factor
HDD Interface
Total HDD Bays
HDD Included No
Max. Capacity HDD Supported (Individual Drive)
Max. Potential Storage
External Interface
RAID Support No
RAID Modes N/A
USB Powered No
Card Reader No
Cooling Fan No
Desktop stand No
Operating System Support
Additional Information
Scan Code LN95893
Model Number UB-151
GTIN 5055948913269

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

12 months
Return to base
DOA Period:
28 days
RTB Period:
12 months
Manufacturer Contact Details
0871 472 4747
