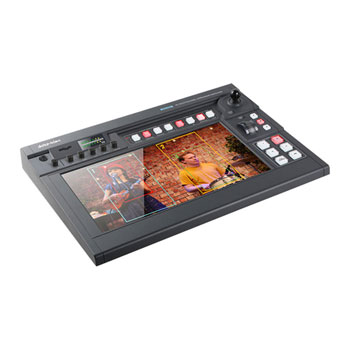

KMU-200 UHD & HD, 14" LCD, 4K

Datavideo KMU-200 Live Switching, Streaming, Audio Mixing and Camera Control

Thumbnail 1 : KMU-200 UHD & HD, 14" LCD, 4K
KMU-200 UHD & HD, 14" LCD, 4K : image 1
Scan code: LN109888 Manufacturer code: KMU-200
£3,588.49Item currently awaiting an ETA
Pre order
Delivery Options
  • By DPD to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

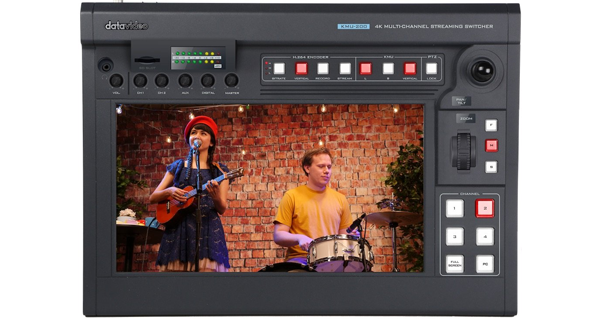

Datavideo - 'KMU-200'
4K Multi-Channel Streaming Switcher


data video kmu 200

Live Switching, Streaming, Audio Mixing and Camera ControlThe Datavideo KMU-200 is an all-in-one solution for producing full HD virtual multi-camera video using one 4K camera. The KMU-200 uses a large touch screen for when using similar gestures used on any tablet or phone. By pinching and swiping, you can control up to 4 sections of a 4K image, the result looks like the footage comes from 4 different cameras. You can control using the hardware to precisely position the cut-outs like a standard PTZ camera.

Featured in the KMU-200 is a dual streaming encoder, which makes it possible to go live on all the well-known streaming platforms directly from the device. You can record easily on SD cards and you can directly upload the recording to an editing suite of your choice. The KMU-200 allows you to create virtual multi-camera videos easily without any hassle.

Supports 4K UHD Resolution Input

kmu200

Works AS 4 Cameras In OneOnline content creation doesn’t require full 4K resolution but this single 4K camera can be used to single out 4 different areas of the video which works like 4 cameras in one.

The KMU-200 is ideal when used for interviews with the ability to use small panels to focus on each interviewee and switch between each one. With Social distancing taking place, the KMU-200 reduces the number of cameras needed to get your video streamed live.

Create Your Horizontal Video

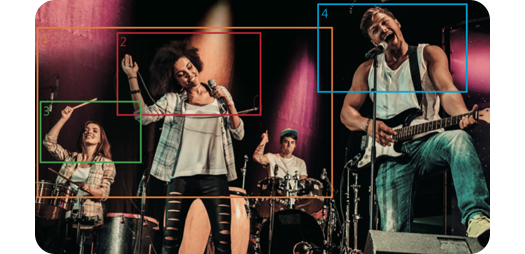

Four Switchable Virtual CamerasThe KMU-200 gives you the ability to make your live-streaming look professional with just six options to make four virtual camera recordings and six different shots. You can go between four different virtual cameras, the full shot and an additional HDMI input, making it very easy to control.

all4
channel 1

Channel 1 Shot

channel 2

Channel 2 Shot

channel 3

Channel 3 Shot

channel 4

Channel 4 Shot

channel 5

Channel 5 Shot (Full Screen)

channel 6

Channel 6 Shot (PC)

Create Your Vertical Video

The Easy WayWith the KMU-200 you can switch between horizontal and vertical mode/video production mode easily. Vertical video recording is ideal for those who prefer to watch the videos on the vertical mode. You can easily change this mode by rotating the screen. KMU-200 is natively able to produce vertical video by switching one button, converting the whole video from 16:9 to 9:16.

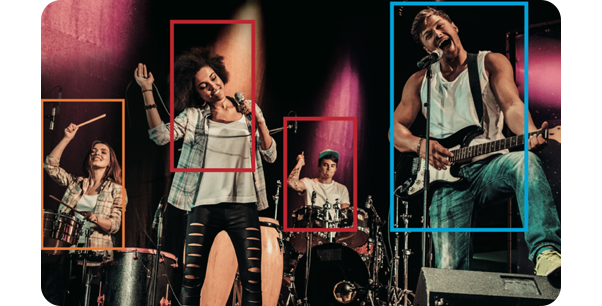

horizontal video
vertical 1
vertical 2
vertical 3
vertical 4
vertical 5

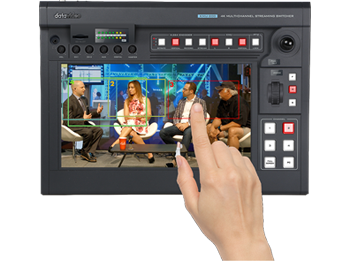

Easy Control of Virtual CamerasYou can control the highlighted video sources by using the touch screen and common gestures like pinching and swiping. The joystick, zoom knob and external buttons can also be used as another option.

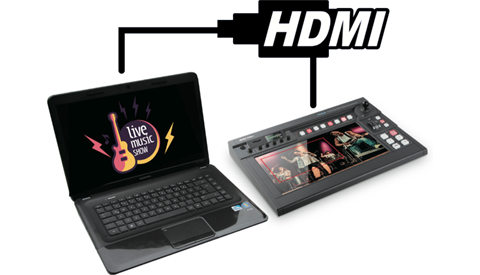

Additional HDMI Input With Loop Out

hdmi

Direct MonitoringThe extra HDMI input gives you the option to show another camera angle or connect a computer's display-output to the KMU-200 for presentation software.

The HDMI loop out means directors get to have direct monitoring of the presentation input. All HDMI inputs have built-in strain relief bars to make sure nothing is at risk during your production, by reducing the chance of any cables becoming unplugged.

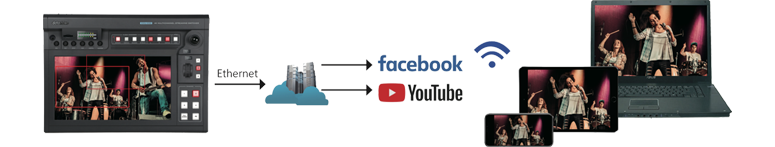

Vertical & Dual Streaming To Two Different Platforms

streaming

No Extra Effort NeededLive streaming video directly from the KMU-200 is incredibly easy. Just connect the KMU-200 to your local network, connect your PC to the same network and configure the streaming encoder. After that you can easily start streaming by pressing the stream button. The built-in streaming encoder greatly reduces, the need for different procedures and additional equipment.

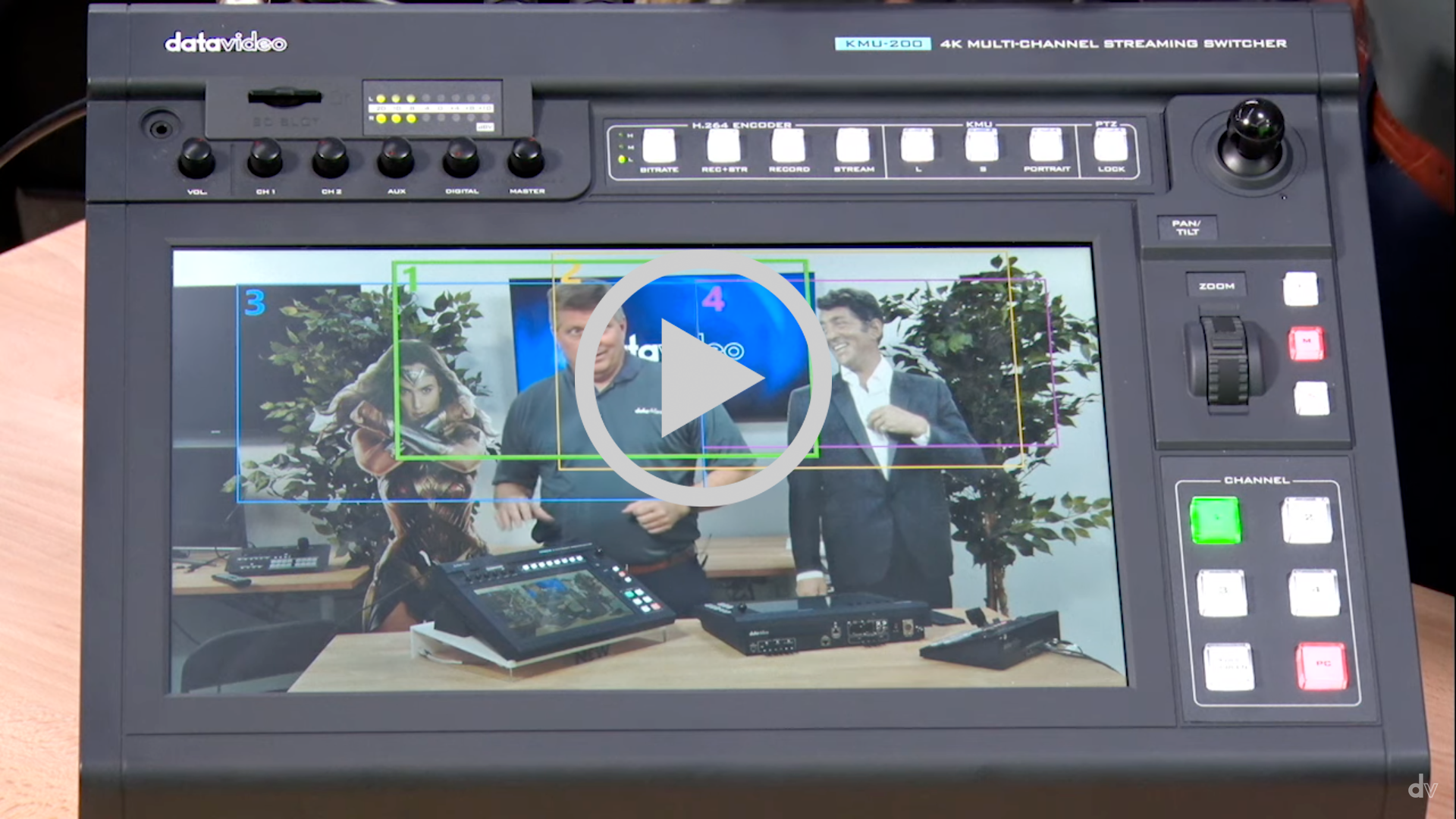

KMU-200 4K Multi-channel Streaming Switcher

Introducing the KMU-200. Now you can produce a 5-angle show using only one 4K camera. The KMU-400 has built-in recording and streaming in 16x9(landscape) OR 9x16(portrait) to Facebook, Instagram, YouTube, Twitch, and more!

The Tech Spec

Features Specification
Video Standard UHD & HD
Video Format Input: 3840x2160p 23.98/24/25/29.97/30/50/59.94/60
1080p 50/59.94/60
Output: 1080p 50/59.94/60
720p 50/59.94/60
Video Processing 4:4:4 / 4:2:2 / 4:2:0
Video Input 1x HDMI 2.0
1x HDMI 1.4 with Loop through
Video Output 2x HDMI 1.4
Support Video Output Resolution 1920 x 1080p 50/59.94/60
1280 x 720p 50/59.94/60
Multiview Out N/A
Multiview Mode N/A
Streaming Encode H.264/AVC, Main/High Profile
Streaming Video Bitrate Record Only: Up to 16Mbps (1080p50/60)
Stream Only: Up to 10Mbps (1080p50/60), dual stream
Record+Stream: 36Mbps (1080p50/60)
Streaming Video Rate Mode CBR
Streaming Audio Mode Stereo/Mono
Streaming Audio Bitrate Stereo: 64~384Kbps
Mono: 32~192Kbps
Streaming Protocols TS over TCP/UDP (unicast & multicast)
RTSP over HTTP/TCP/UDP (RTSP Elementary Streaming)
RTMP/RTMPS (Publish)
HLS
SRT
Network Interface 1x RJ45 (10/100Mbps Ethernet)
Recording Storage Medium SD Card
Recording Storage File System MP4
Built-in Audio Mixer Yes, 4 channels
Audio Input 2x XLR(Mic)
2x RCA
Audio Output 2x Unbalanced RCA
Audio Sampling N/A
Reference Input N/A
Control Interface N/A
Preview Display 14” Capacitive Touch LCD
Controller N/A
Dimension (LxWxH) 438 x 331 x 114 mm
Weight 4.3 kg
Power Supply DC 12V, 52W
Operating Temp. Range 0~40 °C
What's in the box 1 x KMU-200 Main Unit
1 x AD Switch DC 12V with AC Cord
1 x Thank You Card
