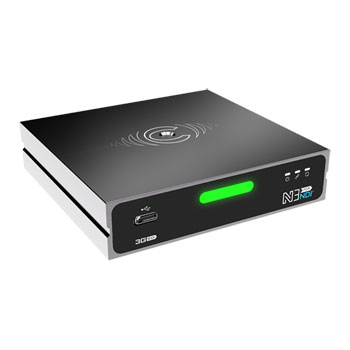

Kiloview - 'N3 3G-SDI/NDI® Bi-directional Converter'
3G-SDI/Full NDI® Encoder/DecoderKiloview N3 for NDI® supports up to 1080P60 video input (Encoder) or 1080P60 video output (Decoder). It is small and compact enough to put in your pocket with the overall size of 100 x 80 x 24mm. It features a 3G-SDI input and 3G-SDI loop for monitoring while NDI streaming, or 3G-SDI output while decoding. A tally system with a big tally light is built-in for indicating which camera is in program or preview. It also has a 3.5mm audio input/output.
Kiloview N3 for 3G-SDI has a wide DC input range from 5V to 18V, so it can be easily powered via USB, power bank or camera battery. It can also be powered over Ethernet (PoE).
A threaded screw camera mount is provided for your mounting on a camera. PTZ control is available by USB to Serial adapter.
• 1x RJ45 + PoE
• Intercom Supported
• Threaded Camera Mount
• PTZ Control Via USB
• Tally Light
• Compact Design
The Tech Spec
|Features||Specification||Model||N3 for NDI®|
|Analog Audio||1x 3.5mm|
|Network||1x RJ45 (PoE)|
|Video Formats||Up to UHD 1080p60 (Downward compatible with |
SD/HD/VESA and custom resolution)
|NDI ® encoding and decoding||1×NDI® encoding or 1x NDI® decoding|
|LED Indicators||Tally, power indicator, connection status indicator|
|Power Supply Modes||POE supported, DC 5-18v|
|Intercom||Support (equipped with Kiloview software)|
|Management||Web Page/IMS remote management|
|Operating temperature||-20℃ to 70℃|
|Dimension||100 x 80 x 28mm|
