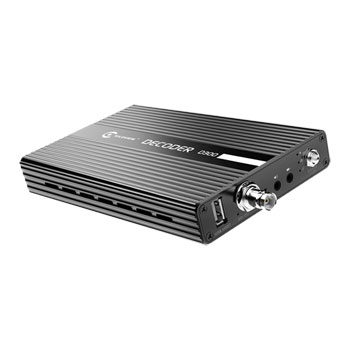

Kiloview - 'D300 4K UHD NDI®| HX (2.0) Video Decoder'
Professional Hardware DecodingThe D300-4K UHD NDI®|HX(2.0) Video decoder is a professional hardware decoding device that can decode multiple video streams without relying on a computer It outputs SDI signal and HDMI signal video, supports 4K UHD resolution, and supports multi-channels video stream split screen to the display wall and dynamic switching.
4K H.264/H.265 Decoding with NDI Support
Superior Decoding PerformanceSupport up to 4K, H.264/H.265, D300 decoder is remarkable in the globe embracing any IP-based stream decoding with 9 channels of video simultaneous decoding. Note: 9 channels with 1080P30, or 8 channels of 1080P60, or 4 channels of 4KP30.
Broadest Protocols Supported:
Network FriendlySupport NDI®| HX (2.0) protocol which greatly saves your network bandwidth and SRT protocol which makes your video transmission more secure, fast and reliable.
Support RTMP/HLS/TS over UDP/RTSP and more protocols for decoding.
Dual Interface Output
Different Output, All in One UnitSDI and HDMI output content can be either the same or not. None of a source stream and neither interface should be failed.
9 Channel Split Display
One-stop Device in VideoTransmissionFlexibility with customized split display of 9 channels of real-time decoded videos on screen wall. Pure and largest control over adjustment for displaying screen size and position as you wish. Easy go with graphic and logo overlay.
Software Bonus:Video Previewing FunctionWith updated feature, you could even preview 16 channels of real-time decoded video streams on its web page, from which you can choose 9 channels for outputting on displaying screen.
The Tech Spec
|Input||2*100M/1000M RJ-45 adaptive Ethernet port|
|Video Output||1*SD/HD/3G-SDI, support up to 1080p 60Hz;|
1*HDMI 2.0, support up to [email protected]
|Output Format||SDI: up to 1080P60Hz; HDMI: up to 4K. Details as below:|
SDI: 1080p60/59.94/50, 1080P30/29.97/25/24/23.98, 1080I60/59.94/50, 720P60/59.94/50. 570I/50, 480I/60
HDMI: 4K [email protected]/30, 1080p60/50, 1080p24/25/30, 1080i60/50, 720p60/50
Compatible with VESA
|Audio Output||SDI/HDMI embbedded, 3.5mm analog line-out output|
|Media Protocol||NDI®|HX2.0/SRT/RTMP/HLS/TS over UDP/RTSP|
|SDI Transmission Distance||Belden 1694A cable standard：SD SDI ≥ 350m；HD SDI ≥ 180m；3D SDI ≥ 100m|
|Video Decoding||H.265 /H.264|
|Decoding Delay||< 200ms(Adjustable)|
|Decoding Ability||4K30Hz: up to 4 channels simultaneously|
1080P 50Hz/60Hz: up to 8 channels simultaneously
1080P 30Hz, 1080I 50/60Hz or 720P and below; up to 9 channels simultaneously
|Split Sceen Display||9 Channels of video sumltaneous decoding|
|Power Supply||12V 1A|
