Scan code: LN85626 Manufacturer code: CD8067303533601

Intel 8 Core Xeon W-2145 Workstation CPU/Processor

Intel Xeon W-2145, S 2066, Skylake-W, 8 Core, 16 Threads, 3.7GHz, 4.5GHz Turbo, 11MB Cache, 140W, Retail

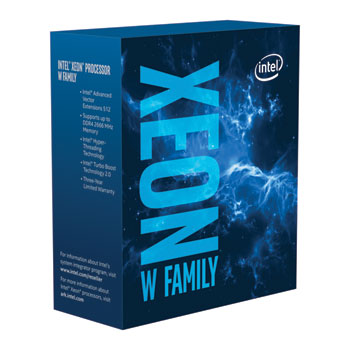

Thumbnail 1 : Intel 8 Core Xeon W-2145 Workstation CPU/Processor
Intel 8 Core Xeon W-2145 Workstation CPU/Processor : image 1
Scan code: LN85626 Manufacturer code: CD8067303533601
£1,149.98Item currently awaiting an ETA
Pre order
Delivery Options
  • By DPD to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info
Product Overview Intel® Xeon® W processors deliver optimized performance for the needs of mainstream workstation professionals. Hardware-enhanced workload performance, security, and reliability for the increasing demands of professional workstations and ready for Professional VR (Pro-VR) design.

Performance Optimized for Mainstream Workstations
Xeon-W is available with up to 18 cores* and 36 threads* with up to 4.5 GHz Intel® Turbo Boost Technology 2.0* frequency, combined with up to 512 GB DDR4 ECC 2666 MHz memory support delivering rapid workload loading and processing.
*Specifications may vary by model.

Enhanced I/O
Up to 48 lanes of PCI Express 3.0 for graphics, storage and network expandability. Enhanced media performance with Intel® Virtual RAID on Chip (Intel® VROC) combining RAID with NVMe drives directly off the CPU.

Security and Reliability
Built-in reliability, availability and serviceability to ensure platform and data integrity. Intel® vPro™ technology delivers hardware-enhanced security, identity protection, and remote manageability. Features • Intel® Mesh Architecture.
• Intel optimized 14nm+ process technology.
• Rebalanced Intel® smart cache hierarchy.
• Support for LGA 2066 socket.
• Four channel DDR4 ECC memory support.
• 48 PCI Express 3.0 lanes.
• Intel® Virtual RAID on Chip (Intel® VROC)
• Integrated Intel® Gigabit Ethernet.
• Intel® Speed Shift Technology.
• Intel® Turbo Boost Technology 2.0.
• Intel® vPro™ Technology.
• Intel® Hyper-Threading Technology.
• Intel® Virtualization Technology (VT-x).
• Intel® Virtualization Technology for Directed I/O (VT-d).
• Intel® VT-x with Extended Page Tables (EPT).
• Intel® TSX-NI.
• Intel® 64.
• 64-bit Instruction Set.
• Intel® SSE4.2, Intel® AVX, Intel® AVX2, & Intel® AVX-512 Instruction Set Extensions.
• 2x AVX-512 FMA Unit.
• Idle States.
• Enhanced Intel SpeedStep® Technology.
• Intel® Demand Based Switching.
• Thermal Monitoring Technologies.
• Intel® Identity Protection Technology.
• Intel® Volume Management Device (VMD).
• Intel® AES New Instructions.
• Secure Key.
• Intel® Memory Protection Extensions (Intel® MPX).
• OS Guard.
• Intel® Trusted Execution Technology.
• Execute Disable Bit.
• Intel® Device Protection Technology with Boot Guard.
Model & Type
CPU Type Intel Xeon
CPU Model W-2145
Socket 2066
Architecture Skylake-W
Manufacturing Process 14 nm
Cores & Clocks
No. of Cores 8 Core
No. of Threads 16
Core Ratio 37 x
Clock Speed 3.7 GHz
Turbo Speed 4.5 GHz
Turbo Boost Max Technology 3.0 Speed N/A
Unlocked Core Multiplier No
Unlocked Full Range Base Clock (B-Clock) No
Bus Speeds
FSB Speed N/A
QPI Speed N/A
UPI Links/Speed N/A
DMI Speed N/A
Memory Support
Max. Memory Size 512 GB
Max. Memory Speed DDR4 - 2666
Max. Memory Channels 4 (Quad Channel)
ECC Memory Yes
Intel Optane Memory No
Intel Optane DC Persistent Memory No
Lanes & Features
Intel Deep Learning Boost Support No
Scalability 1 Socket/Processor ONLY
Node Controller Support No
PCIe Version 3.0
PCIe Lanes 48
Integrated Graphics
Features Integrated Graphics No
Integrated Graphics Model/Type N/A
iGPU Cores
iGPU Base Clock N/A
iGPU Boost Clock N/A
iGPU Max. Resolution N/A
CPU Cache
L1 Cache
L2 Cache
L3 Cache 11MB
Intel® Smart Cache N/A
Thermals & Package
Max. TDP 140W
Thermal Specification 70 °C
Heatsink/Cooler Included? Not Included, Sold Separately
Package Type Retail
Additional Information
Scan Code LN85626
Model Number CD8067303533601
GTIN 00675901490337
