Datavideo 12G-SDI Distribution Amplifier
Datavideo VP-601 12G-SDI Distribution Amplifier, 1x Input to 8x Output, SD/HD/3G/6G/12G SDI
to your specified address. |
Receive SMS with one-hour delivery window
Weekend, timed and European delivery options are available at checkout
Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery windowWeekend, timed and European delivery options are available at checkout
Collect from our Bolton store, BL6 6PE |
Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)
Datavideo - 'VP-901 1x8 12G SDI Distribution Amplifier'

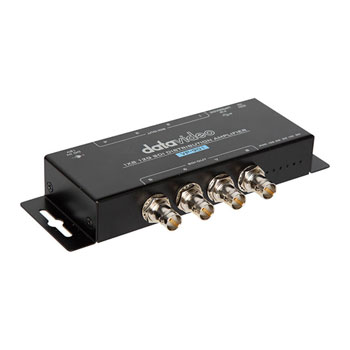

VP-901 1x8 12G SDI Distribution AmplifierThe VP-901 12G SDI Distribution Amplifier can distribute a single 12G, 4K, HD, or SD-SDI input into eight SDI outputs. It is a reliable video device, which splits an SDI, HD-SDI, 3G-SDI, 6G-SDI, or 12G-SDI video source to SDI compliant video displays simultaneously. It also supports re-clocking for a clean signal over long cable runs.
Digital Signage Applications
Useful applications in digital signage,
indoor, and outdoor studiosSupports 12G/6G/3G/HD/SD-SDI video with embedded Audio
Equalisation and re-clockingTo provide better performance on video and reduce the accumulated jitter problem.
LED indication of signal lock and video rateWith easy-to-use controls, the VP-901 is ideal for a variety of broadcast, post-production, and professional AV applications.
Plug and playAutomatic detection of incoming data rate
The Tech Spec
|Features||Specification||Video Input/Output||Input: 1 x BNC
Output: 8 x BNC
|Video Format||3840x2160p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50, 720p: 60/59.94/50
525i59.94 NTSC, 625i50 PAL
|Video Bandwidth||11.88Gpbs & 11.88/1.001Gbps|
|Audio Format||Support SDI embedded audio|
|Power||12V DC Jack|
|Dimension (LxWxH)||167 x 50 x 24 mm|
|Operating Temp. Range||0~40 °C|
