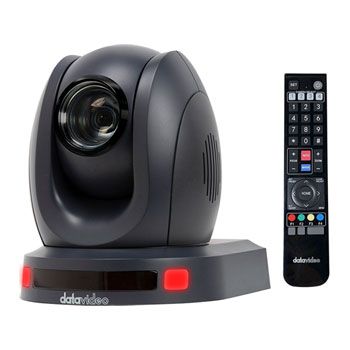

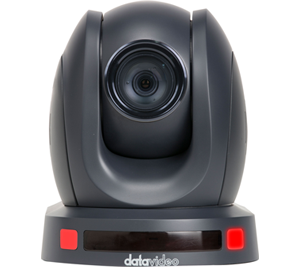

Datavideo PTC-140 NDI HX PTZ Camera

Datavideo PTC-140 NDI HX PTZ Camera, 1080p, 20x Optical Zoom, 10x Digital Zoom, 1920x1080 frame

Thumbnail 1 : Datavideo  PTC-140 NDI HX PTZ Camera
Datavideo  PTC-140 NDI HX PTZ Camera : image 1
Scan code: LN109526 Manufacturer code: DATA-PTC140NDI
£1,380.49
Order now and get it tomorrow, Tue 19th Oct
Delivery Options
  • By DPD On 19th Oct to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

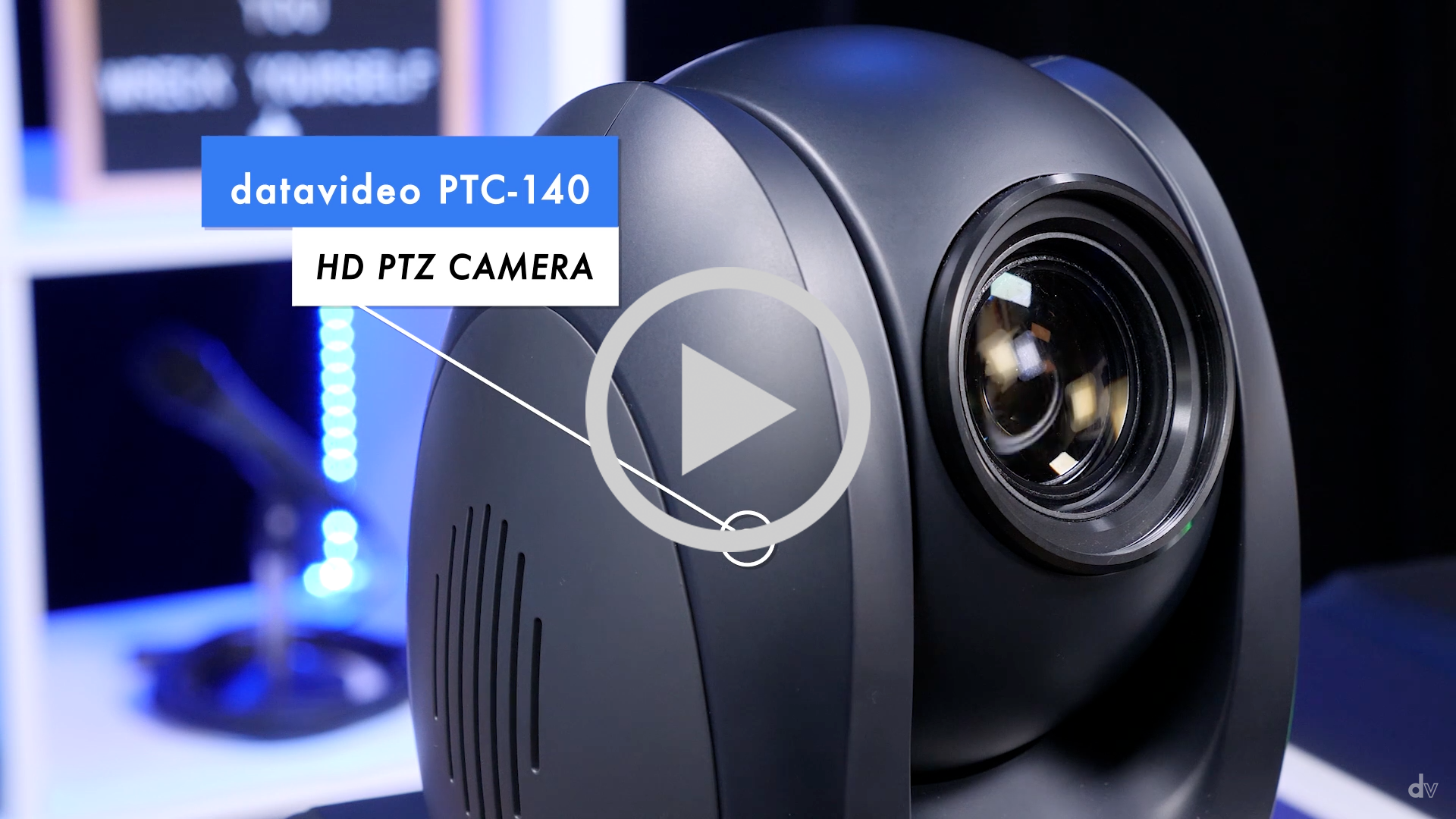

Datavideo - 'PTC-140'
HD PTZ Camera


datavideo ptc-410

Incredible Full HD resolutionThe PTC-140 includes a 1/2.8 inch CMOS sensor, 1920x1080px Full HD resolution, 60fps.

Amazing Features • Low Noise CMOS effectively guarantees high SNR of camera video.
• Supports 16000, 32000, 44100, 48000 sampling frequency.
• Supports RS-232, RS-422 and RS-485 control protocol.
• Supports compressed resolutions up to 1920x1080 with frame up to 60fps.
• 1/2.8 inch CMOS sensor.

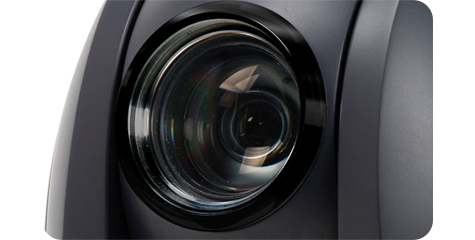

20x Optical Zoom & 10x Digital Zoom

optical zoom

High Quality Shots From A DistanceThe PTC-140's 20x optical zoom and 10x digital zoom allows you to set it up at a close or far distance and still get great, detailed shots.

Noise Reduction

noise reduction

Advanced 2D/3D Noise Reduction FunctionSupports advanced digital noise reduction, even in bad lighting conditions can capture a crisp and clear shot.

Video Compression

video compression

H.264/H.265 Video Compression For StreamingThe datavideo PTC-140 comes with a built-in streaming encoder and can encode up to 2 simultaneous streams to any cloud service.

PTC-140 Series Cameras

The Tech Spec

Features Specification
Video format 1080p 60/59.94/50/30/29.97/25
1080i 60/59.94/50
720p 60/59.94/50
Image Sensor 1/2.8 inch high quality HD CMOS sensor
Effective Pixels (approx.) 2.07 Mega pixels
S/N Ratio >55dB
Min. Illumination 0.5Lux (F1.8, AGC ON)
Electronic Shutter Auto / Manual
Zoom Ratio 20x Optical Zoom, 10x Digital Zoom
Gamma Control Off / Normal
Iris Control Auto / Manual
Digital Noise Reductions Yes
On-Screen Display (OSD) English, Simplified Chinese
White Balance Fixed Lens
Gain Control Auto
White Balance Auto, Manual, One Push, 3000K, 4000K, 5000K, 6500K
AGC / Gain Control Auto / Manual
Mirror / Flip Image Yes
Focus Mode Auto / Manual
Panning / Tilting Range Pan: 340° , Tilt: +90° to -30°
Panning / Tilting Speed Pan: 0.1~60°/sec
Tilt: 0.1~30°/sec
Preset 255 Position
Focal Length f=5.2 (wide) to 98 (tele) mm
F1.6 to F3.5
Field of View (Horizontal, Wide) Approx. 54.7° (WIDE END) / 3.3° (TELE END)
Image Compensation Backlight Compensation
Video Output HDMI x 1
SDI x 1
Audio Input 3.5mm Line in
Tally LED Dual color (Red, Green)
Filter M52.0 x 0.75 Thread with UV Protection
Protocol VISCA/Pelco-D/Pelco-P; Baud Rate:115200/38400/9600/4800/2400bps DVIP
Remote Control Interface and Transmit Distance RJ-45: for IP control (DVIP)
RS-232: Mini DIN 8-pin (IN) Mini DIN 8-pin (OUT)
RS-485
Video Compression Format H.264, H.265, Dual stream output
Audio Compression Format AAC/MP3/PCM Audio compression
HD IP Interface 100M IP port(100BASE-TX); Support DVIP
Network Protocol RTSP, RTMP
F/W Update Ethernet
IR Control Yes
Camera Control Unit RMC-180/RMC-300C
Tripod Mount 1/4-20 UNC
Options WM-1
Color Black/White
Dimension (LxWxH) 156 x 182 x 186 mm
Weight 1.6 kg
Operating Temp. Range 0~40 °C
Power DC 12V 12W
What's in the Box 1 x PTC-140 Unit
1 x IR remote controller
1 x PTC-140 Thank You Card
1 x Ceiling mount bracket-A
1 x Ceiling mount bracket -B
6 x Ceiling mount bracket screw M3*4mm
1 x UV Filter
1 x DC 12V Power Adaptor
1 x Power Cord
1 x A tightrope
1 x RS-232 DB9 9 Pin to 8 Pin Mini DIN Cable
1 x RS-485 2 Pin Connector
Specifications
Mega Pixel 1080p
Resolution (Still Image) 1920x1080 (Full HD)
Resolution (Video) 1920x1080 (Full HD)
Live Video Frame Rate
Zoom
  • 20 x Digital
  • 10 x Optical
LCD Display No
Sensor Type
Dynamic Range
Connectivity DC In
Onboard Memory
Storage Type
Image Formats Supported
Video Formats Supported
Shooting Modes
Weight 1600 g
Dimensions 182 x 186 x 156 (WxHxD mm)
Colour Black
5.1 Sound No
