Scan code: LN111465 Manufacturer code: DATA-HS1600TMKII

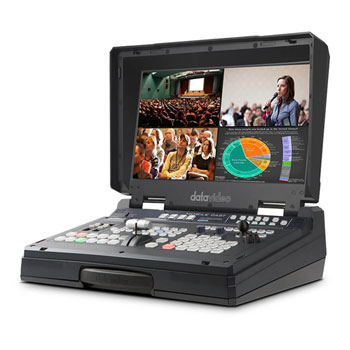

Datavideo HS-1600T Mark II Portable Video Streaming Studio

Datavideo HS-1600T Mark II, 4-Channel HD/SD HDBaseT Portable Video Streaming Studio with PTZ Camera Control

Thumbnail 1 : Datavideo HS-1600T Mark II Portable Video Streaming Studio
Datavideo HS-1600T Mark II Portable Video Streaming Studio : image 1
Scan code: LN111465 Manufacturer code: DATA-HS1600TMKII
£5,634.49Item currently awaiting an ETA
Pre order
Delivery Options
  • By DPD to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

Datavideo - 'HS-1600T Mark II'
'4-Channel HS/SD HDBaseT
Portable Video Streaming Studio'

Datavideo HS-1600T Mark II

Made for Mobility, Made for the webThe HS-1600T Mark II brings a new level of simplicity to production workflows. You'll set up faster and easier thanks to its portable "briefcase" design and HDBaseT Technology. And thanks to its built-in H.264 web streaming encoder, you can stream your show to virtually any CDN like YouTube and Facebook in no time.

Datavideo HS-1600T Mark II

Variety of video and audio input/ouput4 video inputs (RJ-45 x 3 + HDMI x 1) and 4 video (HDMI x 3)+HDBaseT outputs
Audio inputs: XLR Analogue x 2 + RCA Analogue (L/R) x 2

Increased Flexibility with HDBaseT

Datavideo HS-1600T Mark II

Made with HDBaseT TechnologyCamera connections typically require one cable for video, a second cable for power, and a third one for control. However, the HS-1600T Mark II is able to do all of the above using only one ethernet cable for each camera. This increase in flexibility greatly reduces setup time, and now you can mount the camera in challenging locations (like spots without nearby power outlets)
*Neutrik Connector not included.

Datavideo HS-1600T Mark II

Built-in H.264 recorder for SD cardsThe HS-1600T Mark II comes with a built-in web-ready recorder. Simply insert your SD card, and you'll have video files that can be immediately uploaded to the video network of your choice or to your website.

Datavideo HS-1600T Mark II

Dual Stream encoder to Facebook Live, YouTube, Twitch, and moreDual Stream encoder to Facebook Live, YouTube, Twitch, and more

Built-in Control for PTZ Cameras

Datavideo HS-1600T Mark II

Built-in camera controlThe HS-1600T Mark II's next generation design saves you time, money, and table space with its built-in camera control interface for up to 3 Datavideo PTZ cameras. (Works with PTC-140T and PTC-150TL)

Datavideo HS-1600T Mark II

17.3" LED Backlit MonitorBuilt-in Monitor Display. 17.3” HD TFT LED backlit monitor with resolution 1920x1080 pix.

dvCloud Compatibility

Datavideo HS-1600T Mark II

Seamlessly compatible with dvCloudGet the most out of your streaming hardware using DVCloud. The HS-1600T Mark II is seamlessly compatible with Datavideo’s DVCloud service. This subscription service give you the possibility of sending your stream to multiple destinations at the same time without having to have multiple hardware encoders.

You can also record your production on the DVCloud platform in h.264 format. After recording you can directly use this recording to upload it to your favourite content platform. Direct SRT streaming to dvCloud prevents hickups and lag in your stream, especially when using slow or unreliable internet connections or when streaming large distances (for instance to the other side of the globe). Even if your destination does not support SRT you can still stream SRT to dvCloud and go to the destination in RTMP.

The Tech Spec

Features Specification
Video Standard HD & SD
Video Format 1080p 50/59.94/60Hz
1080i 50/59.94/60Hz
720p 50/59.94/60Hz
576i/p 50Hz
480i/p 59.94Hz
Input Routable / Crosspoint N/A
Video Inputs 3 x HDBaseT
1 x HDMI
Computer Graphic Interface 1 via HDMI
Down-converted Output Yes
Video Outputs 2 x HDMI PGM
1 x HDBaseT (RJ-45)
1 x Stream Port (RJ-45)
Audio Inputs 2 x Balanced XLR
1 x Stereo RCA (L/R) De-embedded Digital Audio
Audio Output 1x Stereo headphone
Digital Embedded Audio Support Input 2 channels
Output 2 channels
Audio Delay Calibration N/A
A+V Switching N/A
USK 1x USK Lumakey support
DSK N/A
Picture in Picture 1
Logo Insertion N/A
Built-in-Audio Mixer 4 channels
Built-in Monitor Display 17.3” HD TFT LED Backlit
1920x1080 pixels
Built-in Intercom & Tally N/A
Streaming Video Encode H.264 / AVC, Main/ High Profile Configurable Bit-rate up to 10Mbps
Streaming Audio Encode AAC-LC
Configurable bit rate ranging from 32Kbps to 384Kbps Sample rate: 48KHz, 16bit
Streaming Protocol TS over TCP/UDP (unicast & multicast)
RTSP over HTTP/TCP/UDP
RTMP/RTMPS (Publish)
Streaming Control Web UI for system configuration and control
Recording File System FAT, exFAT, NTFS
Recording File Format MP4
Recording Setting Control Web UI for system configuration and control
Dimension (LxWxH) 455 x 355 x 134 mm
Weight 7.8 kg, Reinforce Plastic Case
Power DC 48V, 4.16A
Operating Temp. Range 0~40 °C
Whats in the Box 1 x HS-1600T Mark II Product
1 x AD Switch DC 56V with AC Cord
1 x Thank You Card
3 x Ethernet Cables (55in. / 140cm)
