Datavideo - 'HDR-90'
'ProRes 4K Video Recorder-1U Rackmountable'

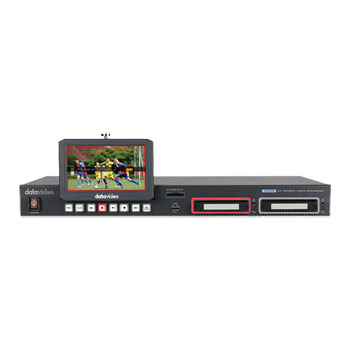

UHD 4K Recording and Compressed in 10-Bit 4:2:2 ProResDatavideo’s HDR-90 is a 1U rack-mountable 4K ProRes Dual Disk Recorder designed for Outdoor Broadcast Vans or other integrated systems. With a built in 5” LCD touch screen on the front for video monitoring, device settings and configuration. The monitors is fitted with a complete suite of scopes and calibration tools including waveform, vectorscope and focus peaking to ensure perfect recording.
Built-in Touchscreen & ISO Recording
Large 5'' LCD Touch screen
for operating and monitoringThe HDR-90 has a built-in 5-inch touch screen, allowing you to easily configure parameters and view the live video.
ISO Recording of four videos,
3G ISO recording and HD playbackNot just for a single-camera setup, HDR-90 can record up to four 1080p60 streams simultaneously to separate ProRes files. All files are synced with the same time code, making it easy for tracking during post-production.
Multiple Input & Output Configurations
Supports multiple inputs and output configurationsSupports one 4K HDMI input, one 12G SDI input, and three 3G-SDI input as well as video outputs with embedded audio.
2 x XLR Analogue Audio Inputs and 2 x XLR Analogue Audio OutputsAudio input can be embedded into the video for output playback thus making HDR-80 the device for live event broadcast.
Easy post-edit and playbackCompressed videos are saved on two 2.5" SSD drives. If one disk is full, the recording will automatically continue on the second disk. It’s easy to expand storage for continuous recording.
Built-in Vector Scope and Closed Captioning
Vector ScopeHDR-90 built-in vectorscope allows you to monitor your record video quality.
A recorder that can be operated
like a video switcherThe HDR-90 is not only an ISO recorder, but it can also be used as a four-channel HD video switcher. Display all four sources in quad view, you can cue and simply tap the touch screen to switch seamlessly between cameras. PGM output can even be used for live streaming.
Closed CaptionWith closed caption support, embedded captions on SDI inputs can be encoded as metadata in recorded .mov files.
The Tech Spec
|Features||Specification||Video Standard||UHD & HD|
|Video Format||2160p 23.98/24/25/29.97/30/50/59.94/60Hz
|Supported Video Input Signal||1x 3G/12G-SDI|
1x HDMI 2.0
1x HDMI 1.4
|Video Output||1x 3G/12G-SDI|
1x HDMI 2.0
3x HDMI 1.4
|Analog Audio Input||2x Balanced XLR|
|Analog Audio Output||2x Balanced XLR|
|Embedded Audio||SDI Input / Output (8CH )|
HDMI Input / Output (8CH)
|Storage Medium||2.5" SSD|
|Multi-channel Recording||Yes, 4-CH HD|
|Estimated Record Time (min per 10GB)||HD: 27 (Proxy), 11.5 (LT), 8 (Standard), 5.5 (HQ)|
3G: 13 (Proxy), 6 (LT), 4 (Standard), 2.5 (HQ)
|Recording Media||2x 2.5" Removable SSD|
|Storage File System||exFAT|
|Video Recording Bit Rate/Colour Sampling||ProRes 422 HQ|
ProRes 422 LT
ProRes 422 Proxy
|Audio Recording Format||Uncompressed PCM|
Sampling rate 48KHz 24bit
|Preview Display||5" Touch LCD|
|Time Code In / Out||Yes|
|External Sync / Genlock||Black Burst & Tri-level with loop thru|
|External Control||RS-232/422 (Dsub 9pin),|
GPI (3.5Ø phone jack)
|Dimension (LxWxH)||440 x 300 x 49 mm|
|Operating Temp Range||0~40 °C|
|Dimensions (mm)||300 x 49 x 440 (WxHxD)|
