Scan code: LN103974 Manufacturer code: CYP-PU-607BD-TX

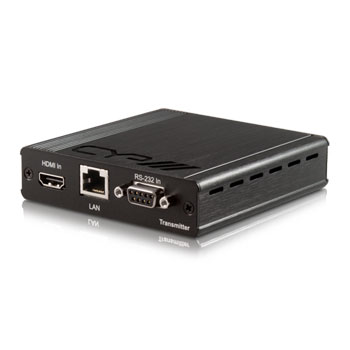

CYP Bi-Directional PoC Transmitter

CYP PU-607BD-TX, HDBaseT, Bi-Directional PoC Transmitter, HDMI/ RJ45/ RS232, 4K, DTS-HD, 100m HDMI over CAT5e/6/7

Thumbnail 1 : CYP Bi-Directional PoC Transmitter
CYP Bi-Directional PoC Transmitter : image 1
Scan code: LN103974 Manufacturer code: CYP-PU-607BD-TX
£238.99Item currently awaiting an ETA
Pre order
Delivery Options
  • By DPD to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Product Overview

The PU-607BD-TX Transmitter allows uncompressed HDMI signals and IP data to be transmitted over a Single CAT5e/6/7 cable. This solution has the added features of RS-232 and 2-way IR control functionality over the same CAT5e/6/7 cable. These combined HDMI and control signals can be transmitted up to lengths of 100 metres. This Transmitter is designed to be used with the PU-607BD-RX and PU-607BDWP-RX Receivers only, which enables Bi-Directional Power over Cable (PoC) functionality.

Features

• HDCP 2.2 Compliant
• Supports all v1.4 HDMI resolutions including 4K.
• Supports uncompressed video/audio up to 10.2Gbps
• Supports resolutions VGA~WUXGA, 480i~1080p, 4K [email protected]/25/30Hz (RGB 4:4:4 & YUV 4:2:2), 4K [email protected] 60Hz (YUV 4:2:0), 4K/[email protected]/25/30Hz (RGB 4:4:4 & YUV 4:2:2) and 4K/[email protected] 60Hz (YUV 4:2:0) dependent upon the output display’s EDID settings
• HDMI, HDCP, & DVI compliant
• Supports HDCP repeating and CEC functions
• Uncompressed data transfer over single CAT cable (100m - CAT6/7; 80m - CAT5e)
• 4K/2K & 4K UHD signals can be transmitted up to 70m via CAT5e/6 and 100m via CAT6a/7
• Uncompressed video 1080p, 60Hz, 48bits
• Audio support up to 7.1CH & Dolby TrueHD, DTS-HD
• 5-Play™ convergence: HDMI, LAN, Bi-Directional POE & Control (IR & RS232)
• Supports 3D signals
• Supports Bi-Directional Power over Cable (PoC)
Note : Only compatible with PU-607BD-RX & PU-607BDWP-RX Receivers

Inputs: 1x HDMI [1x HDMI Uncompressed AV and Data], 1x 9pin Dsub [1x RS-232 Data], 1x 3.5mm Stereo mini-jack [1x Infra Red Receiver]
Outputs: 1x RJ45 [1x HDMI & Propriety Data], 1x 3.5mm Stereo mini-jack [1x Infra Red Emitter], 1x RJ45 [1x Ethernet (I/O) IP]
POE PSU: Bi-directional POE
PSU: 24V/1.25A
Dimensions: 100mm [W] x 115mm [D] x 25mm [H]
Net Weight: 260g
Gross Weight: 700g
