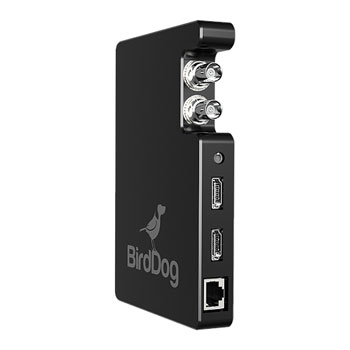

BirdDog Studio - SDI and HDMI to NDI Encoder
BirdDog Studio - SDI and HDMI to NDI encoder with Tally and PoE
By DPD On 4th Aug
to your specified address. |
Receive SMS with one-hour delivery window
Weekend, timed and European delivery options are available at checkout
Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery windowWeekend, timed and European delivery options are available at checkout
Collect from our Bolton store, BL6 6PE |
Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)
Configurable Displays allow either the director or cameraman to quickly and easily identify the camera or on-screen talent to be aware of which camera is currently live to air via the bright multi-colour LED display.
BirdDog Studio enables your existing cameras to be included into a new IP workflow for your live productions. Once you convert your HDMI or SDI signal to IP the possibilities of live productions are magnified. Any network connection becomes a live video input into your switcher.
• More flexible video inputs into your live production*
• Access video resources from anywhere in the facility
• Easily integrate Tally into productons, even outside the studio
NDI made simple
Convert your baseband SDI or HDMI to NDI and take full advantage of flexible IP networks. No need to run long SDI cables or purchase expensive video routers, simply access your live video in real time anywhere on your network.
Dual Color Tally
We do Tally the right way. BirdDog Studio can display Tally onbaord and externally via Tally out. Due to our superior NDI integration we can provide both Program and Preview tally indicators.
Simply set the display to be full screen Tally or split screen to show both program and preview.
Power from anywhere
We have your bases covered when it comes to power. BirdDog Studio can accept power input form the Ethernet cable via PoE technology. Don’t have a PoE network infrastructure? No worries, simply power via DC or V/Gold-mount battery plate optional accessories with power pass-through (coming soon).
Central fleet control
Control and configure multiple BirdDog Studio devices through our admin panel which is accessible via a web browser on both mobile devices and desktop.
Monitor loop-out/format converter
SDI and HDMI outputs are always live allowing you to convert from SDI to HDMI and vice versa. Connect a monitor to BirdDog Studio or simply use to loop out to other gear.
We’re working all the time and as additional features are made available we will release these at no cost. To make updates easy a simple site deployment wizard will ensure all BirdDog Studios in your facility are updated, and all running the same software version. Features • SDI to NDI with loop out.
• HDMI to NDI with loop out.
• Cross convert SDI & HDMI.
• Bi-colour tally. Program & preview.
• DC & Power over Ethernet (PoE).
• Web & Mobile based fleet managment.
• V-Mount & Anton Bauer mounting options.
• w/ power pass through.
• 1080p 29.97/25/59.94/50
• 1080i 59.94/50
• 720p 59.94/50
• SD PAL/NTSC
Video Protocol Support
• NDI Realtime Encoding.
• Embedded via SDI/HDMI.
• Headset connector.
• 802.3 PoE Compliant.
• 2-pin 8-24v DC with D-Tap adapter.
• 3.5mm GPIO 2 position (Program/Preview)
• 5x35 LED Display
• 3 Selectable modes (Info, Tally, Multi-Tally)
• Web Based
• (Mobile and Desktop compatible)
• 105mm (W) x 150mm (H) x 19.5mm (D)
