Thunderbolt 2 Docking Station

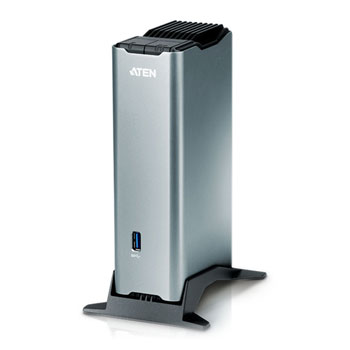

The US7220 Thunderbolt 2 KVM Docking Station is a dual-computer KVM docking station for your workspace. You can share Thunderbolt devices, a dual-monitor setup and USB peripherals through a single cable, directly to two computers.
The US7220 enables two Thunderbolt 2- enabled computers to share peripherals with ultra-high 20Gbps data transfer rates. As a KVM sharing switch it allows you to easily switch the keyboard, video, mouse and peripherals between two computers with the push of a button. With the ability to daisy-chain up to five Thunderbolt devices, the US7220 connects up to 11 peripherals including Thunderbolt monitors and video capture devices; plus USB drives, printers, high-definition cameras, keyboards, mice and more.
The ATEN Thunderbolt 2 KVM Docking Station is the ideal choice for those who want the flexibility of laptop computing – with the performance, sharing and high-definition/dual-monitor capabilities of a full workstation.
• Thunderbolt 2.0 compliant with data transfer rates up to 20Gbps.
• Connect 11 devices to a laptop through a single Thunderbolt cable*.
• Two Thunderbolt ports connect two Thunderbolt hosts.
• One Thunderbolt port connects a Thunderbolt device and daisy-chains up to 5 additional devices.
• Gigabit Ethernet port.
• HDMI port supports an additional HDMI display.
• Supports three USB 3.1 Gen 1 ports with data transfer rates up to 5Gbps.
•Two USB 2.0 ports with data transfer rates up to 480 Mbps.
• Supports high-definition audio signals with Dolby and DTS pass-through via Mini TOSLINK; and 2.1 channel audio via 3.5 mm audio cable.
• Analog/Digital audio line-in and line-out.
• Supports HDMI 1.4b with 4K (UHD) resolution.
• Supports DisplayPort 1.2 with 4K (UHD) resolution.
• eSATA port for storage devices.
Note: Additional Thunderbolt cable sold separately.
1x US7220 Thunderbolt 2 KVM Docking Station.
1x Thunderbolt Cable (1 m).
1x AC Power Adapter.
1x Vertical Stand.
1x User Instructions.
