ATEN 2-Port USB HDMI/Audio Cable KVM Switch
ATEN CS692 2-Port USB HDMI/Audio Cable KVM Switch with Remote Port Selector, HDMI, USB, Full HD 60Hz
By DPD On 22nd Jun
to your specified address. |
Receive SMS with one-hour delivery window
Weekend, timed and European delivery options are available at checkout
Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery windowWeekend, timed and European delivery options are available at checkout
Collect from our Bolton store, BL6 6PE |
Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)
UPS and DPD Pickup Pickup from local convenience store |
Collect your parcel from your newsagents, petrol stations and convenience stores
Protect against installation damage for 28 days.
ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.
Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

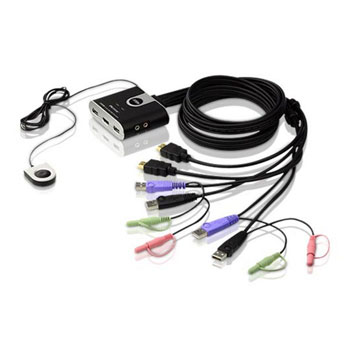

2-Port USB HDMI/Audio Cable KVM Switch with Remote Port Selector
The CS692 HD USB KVM Switch links two HD-enabled PCs or devices to a single USB keyboard, USB mouse, and HD display console. The CS692 Switch takes a giant step forward from prior cable KVM models in the Petite series, by offering full HDMI functionality, USB 2.0 peripheral sharing (via a USB hub attached to the USB mouse port), and a firmware upgrade function that allows you to keep up with latest available versions.
Featuring an unbeatable combination of HDMI functionality, USB 2.0 peripheral sharing convenience, gaming keyboard support, and enhanced user-friendly operations, the CS692 allows users to keep up with the latest innovations in desktop multimedia applications.
• Superior video quality - up to 1920 x 1200 and 1080p.
• Compatible with widescreen LCD monitors.
• Computer selection via a remote port selector, hotkeys, and USB mouse.
• Independent switching of the KVM and Audio focus - one computer has the KVM focus and the other the Audio focus.
• Built-in all-in-one cables (2 x 1.2 m) and bus-powered design.
• One KVM console controls two USB HDMI computers.
• HDMI compatible; HDCP compatible.
• Audio-enabled - full bass response provides a rich experience for 2.1 channel surround sound systems.
• Multiplatform support - Windows, Mac, Linux.
• Video DynaSync™ - exclusive ATEN technology eliminates boot-up display problems and optimizes resolution when switching between ports.
• Power on detection - if one computers is powered off, the CS692 will automatically switch to the other computer.
• Supports gaming and multimedia keyboards.
• Supports multifunction and wireless keyboards and mice.
• Console mouse port emulation/bypass feature supports most mouse drivers and multifunction mice.
• Mac keyboard support and emulation**.
• USB 2.0 mouse port can be used for USB hub and USB peripheral sharing***.
• Firmware upgradable.
** PC keyboard combinations emulate Mac keyboards. Mac keyboards work only with their own computers.
*** May require an additional power adapter. To use the USB 2.0 mouse port as a USB hub, you must first disable mouse emulation mode.
|Connector From||HDMI (A) Female|
|Connector To||HDMI (A) Male|
|Cable Features||USB Bus Powered|
|Total Weight||480 g|
