Scan code: LN77607 Manufacturer code: 90YV09B1-M0NA00

ASUS ROG XG Station 2 Thunderbolt 3 Laptop External Graphics Dock ROG Aura

ASUS ROG XG Station 2 Thunderbolt3 External Graphics Dock, With 600w 80 Plus Gold PSU, GbE, USB 3.0, ROG Aura Support

Thumbnail 1 : ASUS ROG XG Station 2 Thunderbolt 3 Laptop External Graphics Dock ROG Aura
ASUS ROG XG Station 2 Thunderbolt 3 Laptop External Graphics Dock ROG Aura : image 1
Scan code: LN77607 Manufacturer code: 90YV09B1-M0NA00
£539.99
Order now and get it tomorrow, Wed 29th Sep
Delivery Options
  • By DPD On 29th Sep to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

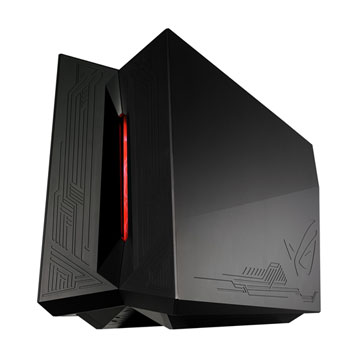

ROG XG Station 2 Thunderbolt 3 External GPU Dock from ASUS

ASUS E-GPU

Maximum Power without Losing Portability Following on from the well received XG Station in 2007, ASUS ROG have returned with it's bigger brother. The ROG XG Station 2 is an external graphics solution that allows laptops to achieve cutting-edge performance by tapping into the power of potent desktop graphics cards. This plug and play external graphics card dock turns Thunderbolt-3 enabled laptops and 2-in-1 PCs into extreme VR-Ready gaming powerhouses, without sacrificing the portability of your system.

Please Note

Graphics card sold separately. Please ensure the graphics card selected meets all size, power, and GPU compatibility requirements.

Maximise Your Connectivity

4K Recording

4x USB 3.0
Ports

Gigabit
Ethernet Port

Type B
USB Connector

Thunderbolt 3 Port

Plug and PlayROG XG Station 2 can be connected or disconnected from your notebook or 2-in-1 PC without restarting. It provides 4 USB 3.0 ports and 1 Gigabit Ethernet port for simultaneous keyboard, mouse, VR headset, monitor, and internet connectivity. When connected with both a Thunderbolt™ 3 and USB Type-B cable, ROG XG Station 2 uses an additional USB signal channel to deliver 2X faster random read speeds and 1.8X faster write speeds than with a Thunderbolt™ 3 connection alone.

Powerful Performance Yet Remains Efficient

4K Recording

80PLUS Gold Internal Power SupplyThe internal power supply provides up to 500W to a high-performance graphics card and up to 100W to your notebook or 2-in-1 PC via Thunderbolt™ 3**, eliminating the need for a separate power cable to help keep your system tidy. With 80 Plus Gold certification, ROG XG Station 2's power supply is up to 90% energy efficient, reducing electricity use and operating costs.

Find Your Personal Style

Glowing with PowerTo fit with the ROG aesthetics, the front panel of the XG Station 2 has been adorned with a plasma tube which emits an ROG inspired glow that crackles with electricity, giving you a stylish hint at the powerhouse within.

4K Recording
down

Breathing

up

Static

up

Strobing

down

Cycling

down

Music

Outshine the competitionExpress your own unique style with the millions of colours and 5 different effects offered by ASUS Aura RGB lighting. When paired with an Aura-enabled ROG Strix gaming graphics card, ASUS Aura Sync technology perfectly synchronises lighting for a system that really shines.

Specifications
Edition ROG XG STATION 2
System-Enclosure Interface Thunderbolt™ 3
Graphics Card Interface PCIe 3.0 x16 Slot
Graphics Card Included No
Graphics Card Edition
Graphics Card Chipset
Built-In I/O Connectivity
  • 1 x AC Power-In
  • 1 x Gigabit Ethernet (RJ45)
  • 1 x Thunderbolt 3 (USB-C) (for Connection to System)
  • 4 x USB 3.0 Type-A
  • 1 x USB 3.0 Type-B (In)
Included Cooling Fans
Lighting Yes
Lighting Type ASUS Aura RGB
Compatible Graphics Card Chipsets
  • AMD Radeon™ R9 Series
  • AMD Radeon™ RX Series
  • NVIDIA GeForce® GTX 10 Series
  • NVIDIA GeForce® GTX 9 Series
  • NVIDIA GeForce® RTX 20 Series
Supported GPU Type Up to 2.5-Slot, Full-Length, PCIe x16 GPU
Max. Internal Dimensions Available for GPU
Compatible Operating Systems Windows 10
Power Supply Included Yes
PSU Form-Factor Internal, Custom
PSU Wattage 600 W
80+ Certification 80 PLUS Gold
Max. Power Available for GPU 500 W
Max. Combined Power Available for Peripherals
Laptop Charging Support Yes
Max. Laptop Power Delivery Up to 100W via USB-C
Data Cable Length
Colour Black
Materials
Includes
  • External GPU Enclosure
  • Thunderbolt™ 3 Cable
  • UK Mains AC Power Cord
  • USB 3.0 Type-B Cable
Dimensions 158 x 278 x 456 mm (WxHxD)
Weight 5.1 kg
Note
Additional Information
Scan Code LN77607
Model Number 90YV09B1-M0NA00
GTIN 4712900598766
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
36 months
