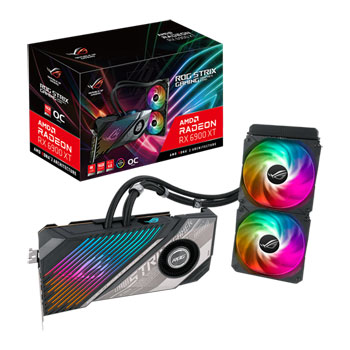

ASUS AMD Radeon RX 6900 XT 16GB ROG Strix LC OC Graphics Card
ASUS Radeon RX 6900 XT ROG Strix LC OC 16GB GDDR6 Ray-Tracing Card, RDNA2, 5120 Streams, 2135MHz GPU, 2365MHz Boost
to your specified address. |
Receive SMS with one-hour delivery window
Weekend, timed and European delivery options are available at checkout
Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery windowWeekend, timed and European delivery options are available at checkout
Collect from our Bolton store, BL6 6PE |
Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)
- 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info

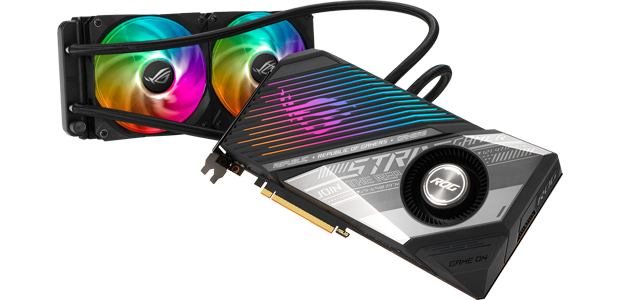

ROG Strix LC OC AMD Radeon RX 6900XT RDNA2 Graphics Card by ASUS
A Liquid Cooling Leviathan Deep in the depths of the ASUS R&D Labs you will find a liquid cooled leviathan capable of drawing out the maximum power from the newest generation of radeon chips, featuring the all-new breakthrough RNDA2 architecture - engineered to deliver powerhouse performance to all gamers. The AMD Radeon™ RX 6900XT graphics card powers a new generation of competitive and 4K gaming with vivid visuals, and elevated experiences in every game and every frame with powerful enhanced new compute units, AMD Infinity Cache, DirectX 12/PCIe 4.0 Support and 16GB of dedicated GDDR6 memory. Experience gaming with realistic lighting, shadows, and reflections along with rich detail thanks to DirectX® Raytracing (DXR), variable rate shading (VRS), and AMD FidelityFX features, optimised for AMD RDNA™ 2 architecture. The AMD Radeon 6900XT is engineered to deliver ultra-high frame rates and serious 4K resolution gaming.
A Dynamic Cooling Solution
Full-Coverage Cold plateA Custom-designed cold plate covers the whole GPU die and the onboard GDDR6 memory to bring the full benefits of liquid-cooling to the components most responsible for raw performance.

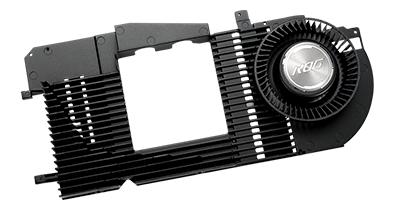

On-Board CoolingInside the belly of the beast, heat produced by power-delivery components is dispelled by a blower style fan and a low-profile heatsink beneath the shroud. combined they exhaust hot air quietly and efficiently.

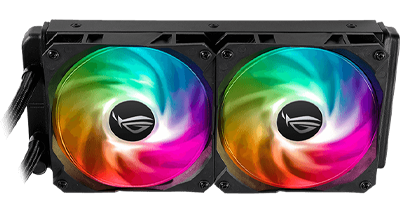

Radiator FansA large 240mm radiator is cooled by two powerful 120mm ARGB fans that are optimised for high CFMs and static pressure.
Top-Tier Cable Management

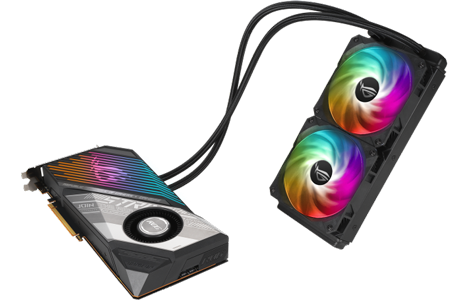

Clever CompatibilityThe LC utilises 600mm tubing to enable compatibility with large chassis or builds that feature an AIO CPU cooler. The radiator fan cables can be connected directly to the card and secured with included cable ties to keep everything organised.
Bring Ambience to Your System
ASUS Aura SyncYou won't find the Strix LC hiding in the shadows. Instead, this denizen of the deep flaunts its power with addressable RGB lighting that shines through striations in the shroud, an illuminated ROG logo, and two ARGB radiator fans and with ASUS Aura Sync utilise millions of colours and preset effects to create your own colour scheme and sync your lighting across other Aura Sync products.
A Breakthrough Gaming Architecture
RDNA2 ArchitectureAMD RDNA™ 2 architecture is the foundation of next-generation gaming PCs and consoles. It is the bedrock of the upcoming revolution in PC gaming graphics and cloud gaming. AMD RDNA™ 2 elevates and unifies visual effects and gameplay across multi- gaming platforms, like no other graphics architecture before.
Contrast Adaptive SharpeningOFF
Contrast Adaptive SharpeningON
Bring Out All The DetailContrast Adaptive Sharpening (CAS) helps increase visual quality by enabling stunning visual sharpness with optional upscaling to restore detail lost after Temporal Anti-Aliasing (TAA) is applied. For games that support FidelityFX CAS, turning off Radeon™ Image Sharpening in Radeon™ Software to avoid over-sharpening is recommended.
Shading Rate OverlayOFF
Shading Rate OverlayON
Get Performance with QualityUsing RDNA2 architecture and variable rate shading allows fidelityFX to analyse luminance and motion of frames to help optimise rending to ensure you also get optimal performance without reducing image quality.
Realistic Geometry ShadingAMD RDNA™ architecture-optimized Combined Adaptive Compute Ambient Occlusion (CACAO) dynamically and efficiently helps improve the appearance of objects based their exposure to ambient light.
Screen Space ReflectionsOFF
Screen Space ReflectionsON
High-Quality Realistic ReflectionsAMD’s implementation of Stochastic Screen Space Reflections (SSSR) delivers high-quality reflections with minimal overhead via an optimised compute shader and AMD RDNA™ architecture-optimised denoising.
High-Quality Raytracing and EffectsDenoising optimised for AMD RDNA™ architecture to help improve the visual quality of real-time raytracing and other in-game effects.
High-Quality HDR GamingOptimised for use with AMD FreeSync™ Premium Pro1 displays, AMD's Luminance Preserving Mapper (LPM) delivers superb HDR and wide color gamut content.
AMD Graphics Card Specifications
|AMD Radeon RX Card Specifications|
|Model||RX 6900 XT||RX 6800 XT||RX 6800||RX 5700 XT||RX 5600 XT||RX 5500 XT||RX 580||RX 570|
|Architecture||RDNA2||RDNA2||RDNA2||RDNA||RDNA||RDNA||GCN 4th||GCN 4th|
|GPU||Big Navi||Big Navi||Big Navi||Navi 10||Navi 10||Navi 14||Polaris XTX||Polaris 20 Pro|
|Reference Base Clock||2,015 MHz||2,015 MHz||1,815 MHz||1,605 MHz||1,420 MHz||1,607 MHz||1,257 MHz||1,168 MHz|
|Reference Boost Clock||2,250MHz||2,250 MHz||2,105 MHz||1,905 MHz||1,620 MHz||1,845 MHz||1,340 MHz||1,244 MHz|
|Memory||16GB GDDR6||16GB GDDR6||16GB GDDR6||8GB GDDR6||6GB GDDR6||4GB/8GB GDDR6||4GB/8GB GDDR5||4GB/8GB GDDR5|
|Chipset||Radeon RX 6900 XT|
|Edition||ROG Strix LC|
|Manufacturing Process||7 nm|
|Cores & Clocks|
|Core Clock||2135 MHz|
|Boost Clock||2365 MHz|
|Video Memory (VRAM)|
|Memory Clock||16,000 MHz|
|Memory Speed (Effective with DDR)|
|Memory Bus||256 Bit|
|Memory Bandwidth||512 GB/s|
|Memory Data Rate||16 Gb/s|
|Cooling Solution||Hybrid Cooling|
|I/O & Connectivity|
|Interface||PCIe 4.0 (x16) [PCIe 3.0 Backwards Compatible]|
|AMD CrossFire Support||Supported|
|AMD Freesync Support||Yes|
|AMD FreeSync Version||FreeSync™ 2 HDR|
|Microsoft DirectX Support||12 API|
|Max. Concurrent Displays||4 Displays|
|Maximum Digital Resolution||7680x4320 (8K UHD)|
|Maximum Analog (VGA) Resolution||N/A|
|Peak Half Precision Compute Performance (FP16)|
|Peak Single Precision Compute Performance (FP32)|
|Peak Double Precision Compute Performance (FP64)|
|Power & Thermals|
|Graphics Card Power Connectors||3 x 8-pin PCIe|
|Graphics Card TDP/Power|
|Minimum Recommended PSU||850 W|
|Maximum GPU Temperature|
|Low Profile Support||N/A|
|Dimensions||277 x 43.6 x 131 mm|
