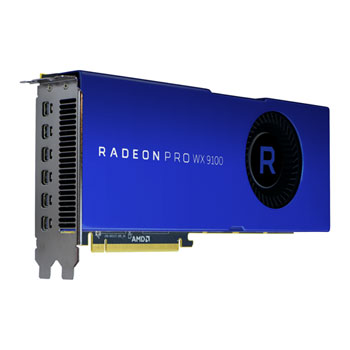

AMD Radeon Pro WX 9100 16GB Graphics Card

16GB AMD Radeon Pro WX 9100, 14nm Vega, HBM2, 1200MHz GPU, 1500MHz Boost, 4096 Streams, 6xMini DisplayPort

Thumbnail 1 : AMD Radeon Pro WX 9100 16GB Graphics Card
AMD Radeon Pro WX 9100 16GB Graphics Card : image 1
Scan code: LN86121 Manufacturer code: 100-505957
£1,669.99Item currently awaiting an ETA
Pre order
Delivery Options
  • By DPD to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info
Product Overview

AMD Radeon Pro WX 9100 16GB Graphics Card

Design visualization is playing an increasingly important role in helping manufacturers streamline design to manufacture workflows. It is also being used more often in product development as well as architecture, engineering and construction industries. Advanced technologies, including real-time visualization, physically-based rendering and virtual reality (VR), give design and manufacturing firms a powerful arsenal of visualization tools that can be used at all stages of product development.
The Radeon™ Pro WX 9100 workstation graphics card provides the necessary performance required to drive these increasingly large and complex models through the entire design visualization pipeline. The Radeon™ Pro WX 9100, like all other Radeon Pro WX products, will also benefit from planned workstation certifications and optimizations for many of today’s popular design applications including SOLIDWORKS®, PTC Creo, Revit and Siemens NX.


“Vega” GPU Architecture
The Radeon™ Pro WX 9100 graphics card is based on AMD’s cutting edge “Vega” GPU architecture, purpose-built to handle big data sets and a diverse range of computational workloads.

Up to 12.29 TFLOPS of Peak Single-Precision Floating-Point Performance
The Radeon™ Pro WX 9100 offers up to 12.29 TFLOPS peak SPFP. This is tremendous compute power that can be used to speed up professional applications where high performance is paramount, from rendering video effects to visualizing complex simulations.

64 Next-Generation Compute Units (nCUs, 4096 Stream Processors) with Support for Double-Rate 16-bit Math
New compute unit design provides super-charged pathways to provide double the processing throughput when using 16-bit data types, accelerating demanding workloads including image/video processing, ray tracing, and artificial intelligence.

OpenCL™ 2.0 Support
Enables professionals to tap into the parallel computing power of modern GPUs and multi-core CPUs to accelerate compute-intensive tasks in leading CAD/CAM/CAE and Media & Entertainment applications that support OpenCL.

Key Specifications
Chipset Radeon Pro WX
Edition 9100
Manufacturing Process 14 nm
Microarchitecture Vega
Cores & Clocks
Streams 4096
Core Clock 1200 MHz
Boost Clock 1500 MHz
Video Memory (VRAM)
Memory Size 16GB
Memory Type HBM2
Memory Clock 945 MHz
Memory Speed (Effective with DDR)
Memory Bus 2048 Bit
Memory Bandwidth 483.84 GB/s
Memory Data Rate 1.89 Gb/s
Cooling Solution Single Fan (1)
Cooler Design AMD Reference Blower
Fitted/Included Backplate No
I/O & Connectivity
Interface PCIe 3.0 (x16)
Connectivity 6 x Mini DisplayPort
AMD CrossFire Support Multi-GPU Compatible
AMD Freesync Support Yes
AMD FreeSync Version
HDR Support No
Microsoft DirectX Support 12 API with Feature Level 12.1
Max. Concurrent Displays
Maximum Digital Resolution 7680x4320 @ 60Hz (8K UHD)
Maximum Analog (VGA) Resolution
Compute Performance
Peak Half Precision Compute Performance (FP16) 24.6 TFLOPs
Peak Single Precision Compute Performance (FP32) 12.29 TFLOPs
Peak Double Precision Compute Performance (FP64)
Power & Thermals
Graphics Card Power Connectors
  • 1 x 6-pin PCIe
  • 1 x 8-pin PCIe
Graphics Card TDP/Power 230 W
Minimum Recommended PSU
Maximum GPU Temperature
Width Dual Slot
Low Profile Support
Package Type
Additional Information
Scan Code LN86121
Model Number 100-505957
GTIN 727419416399
