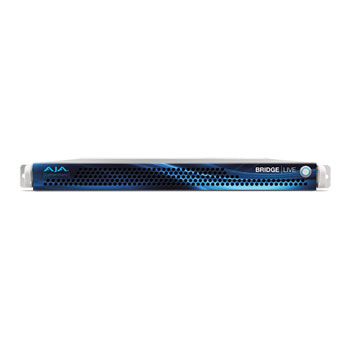

AJA Bridge Live 12G Multi Channel Encoder/Decoder

AJA BLVE-12G4-S01, 4x 3G-SDI/ 1x 12G-SDI 1RU Rack Mount, Encoder/Decoder/Transcoder for Live Video, Dual 10GbE

Thumbnail 1 : AJA Bridge Live 12G Multi Channel Encoder/Decoder
AJA Bridge Live 12G Multi Channel Encoder/Decoder : image 1
Scan code: LN111434 Manufacturer code: BLVE-12G4-S01
£15,600.49Item currently awaiting an ETA
Pre order
Delivery Options
  • By DPD to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

AJA - 'Bridge Live 12G'

AJA Bridge Live 12G

High Performance Multi-Channel Video Encoding,
Decoding, Streaming and Transcoding for Live Video
BRIDGE LIVE is a turnkey solution built for critical streaming applications with high performance 12G-SDI video encoding/decoding, stream-based transcoding, flexible I/O, comprehensive metadata support, closed caption support and all within a compact 1RU form factor with redundant power supplies.

Designed with the ability to support both low-latency and high-quality workflows across a range of codecs, containers, and protocols, BRIDGE LIVE enables numerous use cases; multi-input live streaming to platforms such as YouTube, Facebook, or Twitch, providing high quality reference video for remote collaboration in production and post, backhauling remote live SDI video sources to the media production facility, SDI to MPEG-TS conversions for Telcos/IPTV/Cable networks, through to encoding for content distribution with ABR ladder profiles or hand-off for OTT packaging, and all supported via public internet.

*Plus optional annual maintenance and feature-set extensions

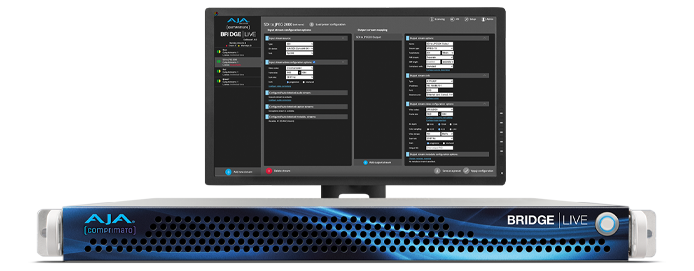

Please Note: Images for Illustration purposes only, Monitor not included.

'A Turnkey Solution for Streaming Applications'

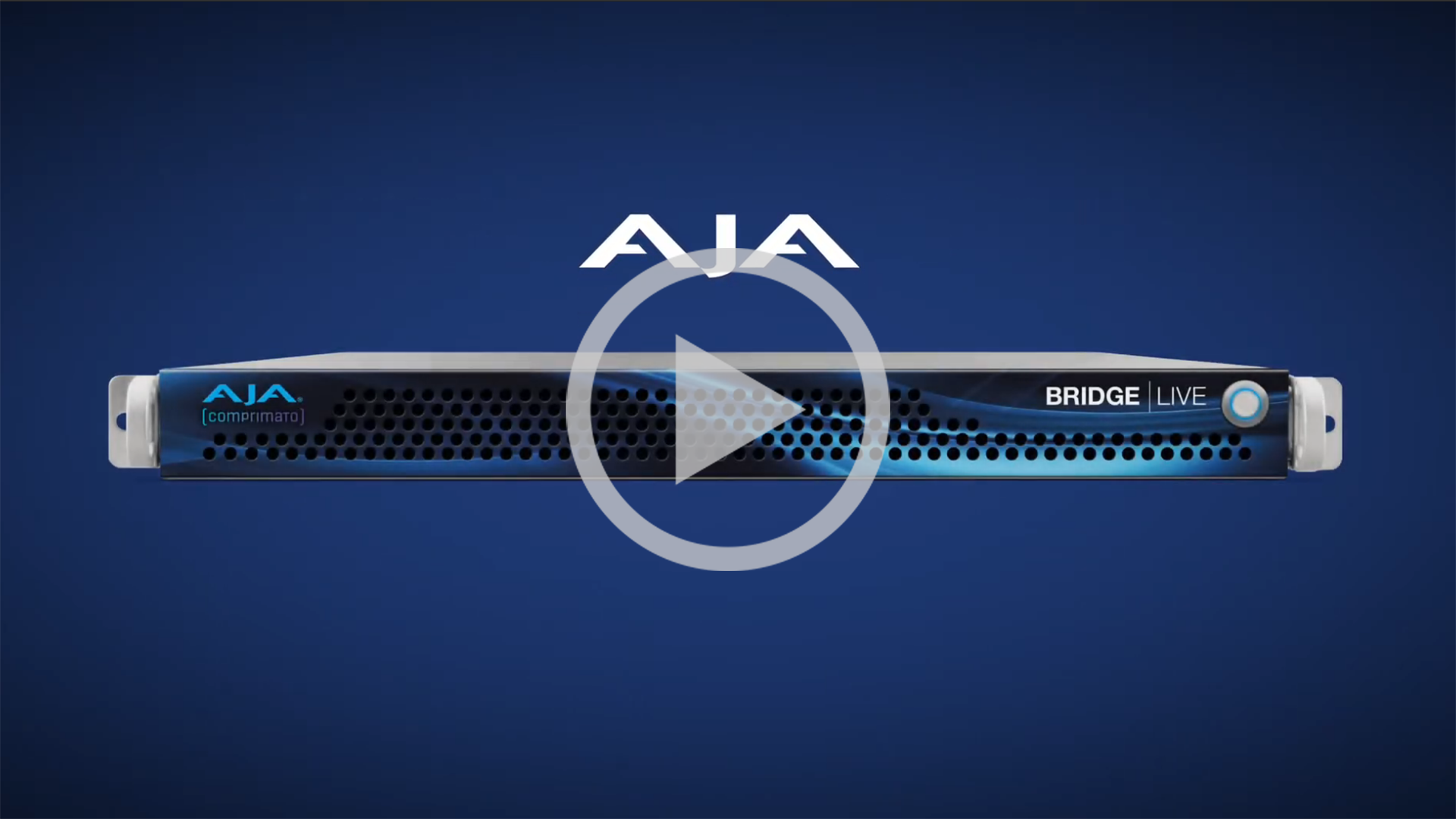

Video OverviewWatch this video to learn more about BRIDGE LIVE. It includes a look at real time encode, decode, and transform capabilities of BRIDGE LIVE between 12G-SDI sources and destinations. BRIDGE LIVE offers codecs from H.265, H.264, H.262 (MPEG2-TS) to optional JPEG 2000 using a variety of transport protocols including SRT for secure and reliable transport needs.

AJA Bridge Live 12G

Comprimato Transcoding & Transport

AJA Bridge Live 12G

AJA and ComprimatoBRIDGE LIVE represents an exciting partnership between AJA and Comprimato, both long standing industry innovators. The merging of AJA’s hardware development and video I/O expertise with Comprimato’s transcoding and internet transport know-how means customers can expect the versatility, speed and quality needed for that competitive edge. The unique fusion of company talent between AJA and Comprimato ensures that BRIDGE LIVE delivers the performance and reliability needed for live H.265 (HEVC), H.264 (AVC, MPEG-4), H.262 (MPEG-2) and JPEG 2000* encode, decode, or transcode needs.

*Full H.265, H.264, H.262 I/O functionality included with BRIDGE LIVE turnkey system, JPEG 2000 I/O license options available.

Multi-Channel SDI Support

AJA Bridge Live 12G

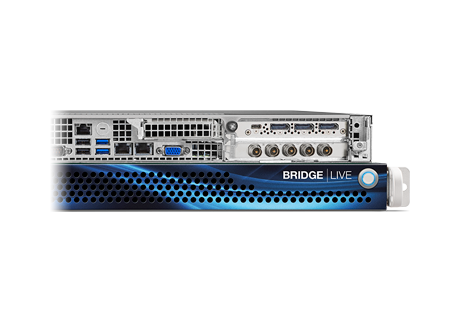

HardwareBRIDGE LIVE supports up to 4x 3G-SDI simultaneously for multi-channel HD or 1x 12G-SDI for UltraHD connections I/O in 1RU. Dual 10GigE Ethernet ports provide network connectivity and dual power supplies provide peace of mind.

Administration, monitoring and access to BRIDGE LIVE is supported via either network browser or local Display Port. Indirect agnostic monitoring and automation is supported via both REST API and SNMP.

Open Source SRT Support

AJA Bridge Live 12G

SRT ReadySRT is an open source video transport protocol and technology stack, developed and pioneered by Haivision, that optimizes streaming performance across unpredictable networks with secure streams and easy firewall traversal, bringing the best quality live video over the worst networks. The SRT Open Source Project, supported by the SRT Alliance, is a collaborative community of industry leaders and developers striving to achieve lower latency internet video transport by continuously improving open-source SRT.

BRIDGE LIVE includes SRT (plus encryption) to ensure that end users are well positioned to deliver their streaming video content securely, with low latency and secure reliability.

Closed Caption & Metadata Support

AJA Bridge Live 12G

Metadata and Closed Caption SupportBRIDGE LIVE fully supports both closed captioning and additional metadata which is often a neglected feature set with lower cost encoding devices.

BRIDGE LIVE supports:
• SCTE-35/SCTE-104 Ad insertion markers
• CEA-608/CEA-708 Closed Captioning
• Embedding Closed Captioning/Subtitles into H.264 SEI messages
• Metadata pass through
• MPEG-2 ancillary packet support, SMPTE 2038
• Electronic Program Guide (EPG) on input

200ms Low Latency

AJA Bridge Live 12G

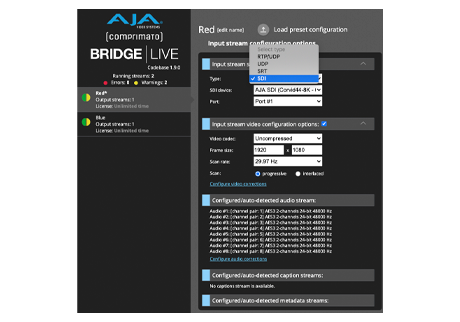

Transport, Encoding and DeliveryBRIDGE LIVE can be configured for low latency or high quality tasks. Depending on configuration, latency can be as low as 200ms. And, BRIDGE LIVE naturally gives you the tools to move content and deliver according to your workflow needs.

BRIDGE LIVE support:
• RTMP, RTMPS
• RTP, UDP
• SRT(plus encryption)
• MPEG Transport Stream
• ABR Ladder Profiles
• Hand-ff for OTT packaging

Wide Streaming Service Support

AJA Bridge Live 12G

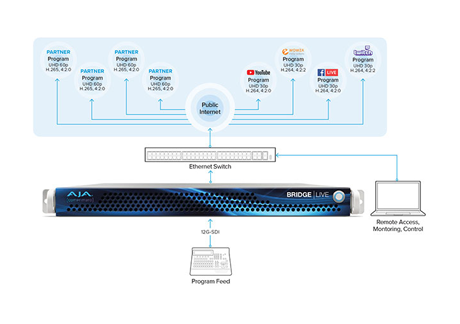

Live Direct-to-Audience StreamingBRIDGE LIVE offers a comprehensive platform for live video streaming. Streaming support includes SRT, RTMP/S, RTP/UDP, and MPEG-TS. Using these standard protocols provides wide support for streaming services from Twitch, YouTube Live and Facebook Live. BRIDGE LIVE builds upon the tried and tested approach of AJA’s HELO streaming device, while including flexibility for multiple inputs, broad format and bit-rate support, as well as metadata and redundancy.

And, while streaming to CDNs for a direct-to-audience delivery, BRIDGE LIVE can simultaneously deliver different stream types to partners to re-transmit, transcode, or store.

Reference Quality Video

AJA Bridge Live 12G

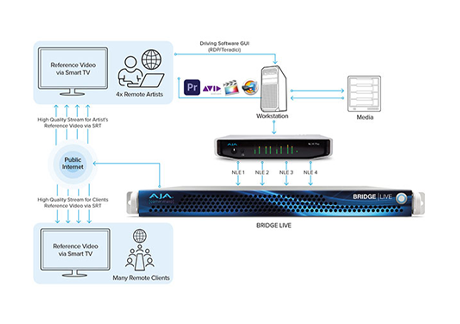

Reference Video for Remote CollaborationProduction and Post: Connecting remote artists and clients using reference quality video, or providing a high quality window into production for those who cannot be on-set.

BRIDGE LIVE means the flexibility to leave media and equipment at the secure, managed facility, and have creative talent work together remotely with reference quality video.

BRIDGE LIVE compliments existing GUI driving technologies (e.g. RDP, Teradici) by layering on the reference quality video needed for creative confidence and client/executive sign-off. Choices between H.265 (4:2:0, 10-bit), H.264 (4:2:2, 10-bit) with turnkey BRIDGE LIVE, or via optional license JPEG 2000 (4:2:2, 10-bit), mean there is choice and flexibility in how to approach your needs in terms of quality and latency.

Remote Encoding and Transport

AJA Bridge Live 12G

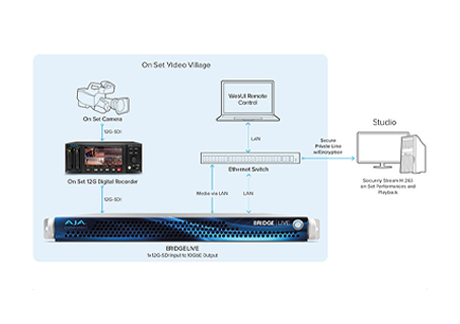

Encoding for Remote ProductionBRIDGE LIVE also offers the flexibility to tap video from on-set recording devices and stream the output of cameras (over a secure private line with encryption) providing a high quality window into production for those who cannot be on-set.

AJA Bridge Live 12G

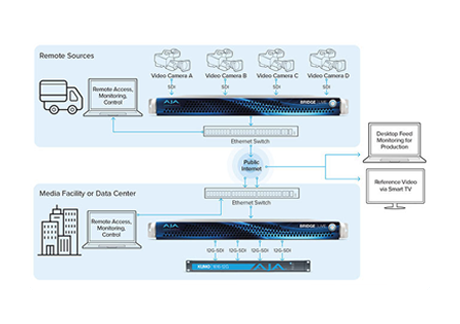

Remote Video Transport and ContributionFor Broadcast, BRIDGE LIVE provides an efficient mechanism for backhauling remote live SDI video sources to the media production facility, in order to be converted back to SDI and made available on the internal facility SDI router for ongoing production/transmission.

Traditional secure lines for remote production can be very expensive, with additional fees being levied for time before and after a production starts and ends. BRIDGE LIVE allows source cameras and local program out to be transported using publicly available internet, with no penalty for early or extended use during a production. BRIDGE LIVE also offers lower latency than traditional secure lines for time critical productions.

Bi-Directional HD Encoding/Decoding

AJA Bridge Live 12G

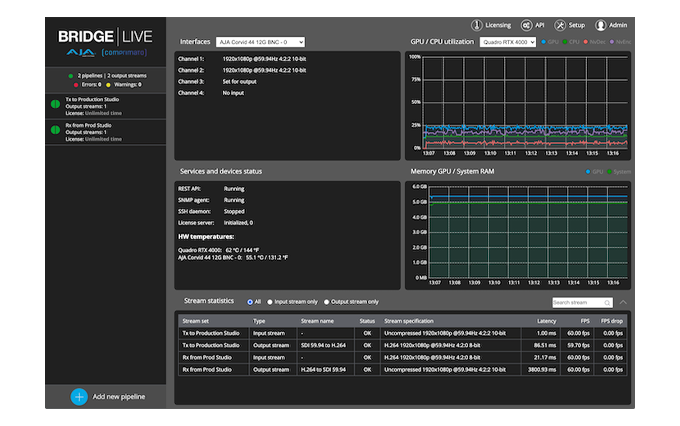

Simultaneous Bi-Directional Encoding and DecodingBRIDGE LIVE also supports simultaneous bi-directional encoding and decoding with HD and SD sources. Using a broadcast facility as an example, you are able to receive up to three remote HD-SDI sources using the public Internet and return one program feed to a remote location.

The broadcast facility receives the three incoming encoded stream sources from the remote location and decodes them into SDI for editing and production, while simultaneously returning to the remote location an encoded program feed.

The remote facility in turn receives and decodes the returned program feed for program monitoring over SDI, while continuing to encode and transmit three HD- SDI sources to the broadcast facility. In this use case, one BRIDGE LIVE device would be installed at the broadcast facility and a second BRIDGE LIVE device would be installed at the remote location.

Encoding for Live Production & Distribution

AJA Bridge Live 12G

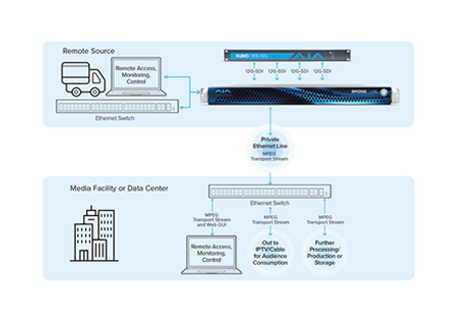

Live Production EncodingTelcos, IPTV and cable operators are often presented with an SDI source or a live event or live production, which is needed as a simple MPEG-Transport Stream with H.264/H.262 encode. The delivered stream may be required for further processing (storage, production), or else be streamed directly to an IPTV/Cable network.

AJA Bridge Live 12G

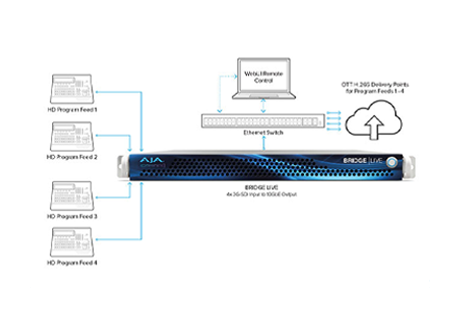

Encoding for Content DistributionFor Studios and Broadcast applications BRIDGE LIVE facilitates primary distribution of finished and mastered content to partners for subsequent streaming to audiences.

BRIDGE LIVE can provide ABR ladder profiles or hand-off for OTT packaging. For example, encoding to H.264 or H.265 for hand-off with ABR ladder profiles, including pointing the ladder profile directly to a local packager or CDN.

The Tech Spec

Features Specification
Video Formats (UHD) 3840x2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
(2K) 2048x1080p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
(HD) 1080i 50, 59.94, 60
(HD) 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
(HD) 720p 50, 59.94, 60
(SD) 625i 50
(SD) 525i 59.94
YCbCr, 4:2:2, 10-bit
Video Codec Colour Component Sampling 4:2:2, 10-bit/8-bit
4:2:0, 10-bit/8-bit
Video Codecs H.264 (AVC, MPEG-4)
H.265 (HEVC)
JPEG 2000 (VSF TR 01)
MPEG-2
Audio Streams/Codec AAC
AC3
MPEG-2 Audio
Uncompressed PCM (multichannel), SMPTE 302M-2007
Metadata Closed Captioning (EIA-608/708)
Line 21 Captions
Metadata pass-through
MPEG-2 ancillary packet support, SMPTE 2038
SCTE-35, SCTE-104 (pass-through)
Subtitles embedded within H.264 SEI messages
Electronic program guide (EPG) on input
Containters and Protocols MPEG-TS
MPTS (input only)
RTMP/RTMPS
RTP, UDP
SRT (including encryption)
VSF-TR01
Video Processing Auto Color Component Sampling based on I/O settings
Cropping / Padding
Color adjustments
Deinterlacing
Frame rate 50% down-conversion (60p->30p, 59.94->29.97, 50p->25p)
Frame rate up-conversion (50i->50p)
Logo insertion
Resizing
Audio Processing Channel Remapping
Gain
Sample Rate conversion
Synchronisation Input PCR
Global configuration (in separate transport stream)
Local configuration (in each transport stream)
Output PTS
Pass-through
Add offset to input PTS
Performance Stream startup time maximum 5 seconds after configuration applied
Latency 200-700ms input to output (based on codec and other parameters)
Up to 4 simultaneous primary HD streams, plus additional output variations per stream*
Up to 1 primary UHD stream, plus additional output variations of that stream*
*Final additional stream count per output is dependent on configuration
Video Input Digital 12G-SDI, SMPTE-2082, 10-bit
6G-SDI*, SMPTE-2081, 10-bit
3G-SDI, SMPTE-424, 10-bit
1.5G-SDI, SMPTE 292M, 10-bit
270 Mbit/s SDI, SMPTE 259M-C, 10-bit
*UltraHD 30p supported, no other SMPTE-2081 support at this time
Video Output Digital 12G-SDI, SMPTE-2082, 10-bit
6G-SDI*, SMPTE-2081, 10-bit
3G-SDI, SMPTE-424, 10-bit
1.5G-SDI, SMPTE 292M, 10-bit
270 Mbit/s SDI, SMPTE 259M-C, 10-bit
*UltraHD 30p supported, no other SMPTE-2081 support at this time
Audio Input Digital 16-channel, 16 and 24-bit SDI embedded audio, 48 kHz sample rate, synchronous per SDI connection
Audio Output Digital 16-channel, 16 and 24-bit SDI embedded audio, 48 kHz sample rate, synchronous per SDI connection
Configuration and Monitoring Local “Kiosk” interface (keyboard, mouse and monitor)
Remote access via Browser
REST API
SNMP
Form Factor 1RU turnkey system
4x full size BNC (12G/6G/3G/1.5G-SDI compatible)
2x 10GigE
Local interface via Display Port and USB
OS custom image
Updates and licenses via download
Size (W x D x H) 436.88 x 429.26 x 43.18 mm
Weight 12.7kg in box
8.2kg server only
Power 100-240 VAC 50/60 Hz (Dual, redundant power supplies)
190W typical, 245W Maximum
Environment Safe Operating Temperature: 5 to 35 C (41 to 95 F)
Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
Operating Relative Humidity: 8-90% noncondensing
Nonoperating Relative Humidity: 5-95% noncondensing
