Scan code: LN110793 Manufacturer code: DLR X570 Audio Workstation

3XS Audio Workstation DLR X570 Audio Workstation

3XS Audio Workstation - Sofa Sound Edition, AMD Ryzen 9 5950X, 32GB DDR4, 500GB M.2 SSD, 2TB SSD, RX5500XT GPU, Win 10

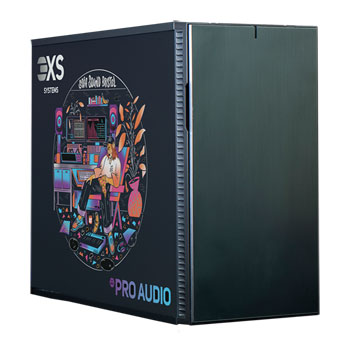

Thumbnail 1 : 3XS Audio Workstation DLR X570 Audio Workstation
3XS Audio Workstation DLR X570 Audio Workstation : image 1
Scan code: LN110793 Manufacturer code: DLR X570 Audio Workstation
£2,499.98Item overdue since 18 September 2020
Pre order
FREE DELIVERY ON THIS ITEM
Delivery Options
  • By DPD to your specified address. | Free Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

PLEASE NOTE We have all the necessary components required to build your system in stock.
However due to demand and our current volume of orders, it will take 15 to 20 working days to build and dispatch your system. Orders will be fulfilled in a queue in a first-come-first-served basis.

3XS - 'Sofa System'

3XS - 'Sofa System'

Ryzen performance for your studioThe 3XS “Sofa” system is a collaboration with DLR and the Sofa Sound Bristol collective, to maximise the available audio processing power for their bass heavy electronic music production and enable them to produce their own social video content with ease.

As with all 3XS audio systems it is designed to maximise audio processing power and low latency performance combined for the lowest possible noise levels. All components used in the system have been tested in our development labs and have been selected to maximise the audio processing efficiency of the workstation, to give more usable power before the audio breaks up with the dreaded clicks and pops you might have experienced before.

The system features an AMD Ryzen™ 9 5950X CPU OEM. An ideal audio computer system will have both a fast clock and turbo speed (the increase in speed of certain cores when required), alongside many cores and threads. With 32 threads running above a 4GHz average clock speed (dependent on load), this delivers fantastic performance in every modern DAW, especially with power hungry virtual synths, instruments and DSP plugins. You can find out how plugin processing power this machine has in the graph in the CPU section below and the comparison to other processors.

3XS - 'Sofa System'

3XS optimized for audio productionAs with all 3XS audio systems it is designed to maximise audio processing power and low latency performance combined for the lowest possible noise levels. All components used in the system have been tested in our development labs and have been selected to maximise the audio processing efficiency of the workstation, to give more usable power before the audio breaks up with the dreaded clicks and pops you might have experienced before.

The system features an AMD Ryzen™ 9 5950X CPU OEM. An ideal audio computer system will have both a fast clock and turbo speed (the increase in speed of certain cores when required), alongside many cores and threads. With 32 threads running above a 4GHz average clock speed (dependent on load), this delivers fantastic performance in every modern DAW, especially with power hungry virtual synths, instruments and DSP plugins. You can find out how plugin processing power this machine has in the graph in the CPU section below and the comparison to other processors.

3XS - 'Sofa System'

Memory

3XS - 'Sofa System'

System RAM for your softwareThe system has 32GB of Corsair Vengeance DDR4 Memory, which is normally ample for electronic music production, as producers tend to be more reliant on audio tracks, virtual synths and short samples than running a large quantity of memory hungry multi-sampled orchestral libraries that a composer would use. The system has two free RAM slots for easy upgrades in the future can be upgraded to a total of 128GB RAM if you suddenly get a film score commission.

The 3600MHz RAM selected for this system is specifically optimised for Ryzen systems and through the testing process done by Scan’s DAW expert, Pete, it produced over 20% increased processing power at low latencies compared to standard 3200MHz DDR4 modules

Storage

3XS - 'Sofa System'

Your OS and applications driveFor the OS drive, we include a super quick Samsung 970 Pro 500GB NVMe drive for your Windows installation and audio applications, which should have plenty of space to host your sequencer of choice as well as your plugins. The Samsungs are a 3XS favourite for reliability, whilst making the computer feel very responsive with super quick boot and load times for applications.

3XS - 'Sofa System'

For hosting your samples and librariesAlongside that OS drive, we have 2TB Crucial SSD, perfect for your projects and sound libraries in order to speed up load times and your instrument browsing compared to a mechanical drive.

Should you also wish to migrate over your old project drives or if you want to just ensure that you will be able to add in additional storage in the future, then rest assured that this system has a second NVME slot and 6 SATA drive connections making it certain to be able to accommodate all those too.

Cooling and Acoustic Management

3XS - 'Sofa System'

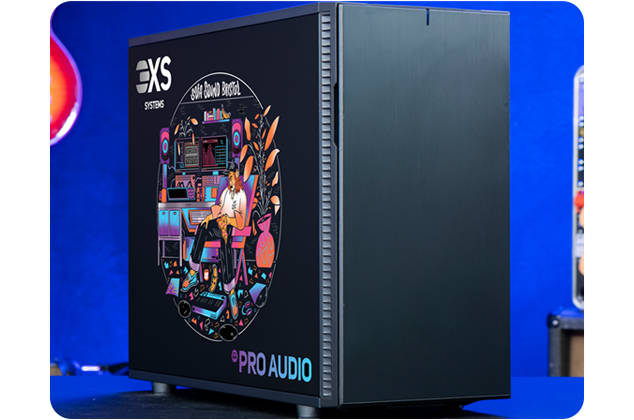

Keeping your system cool and quietAll 3XS audio systems have been sepcified to minimise case noise from the cooling sysstem, to leave your studio as quiet as possible, for effectiver monitoring as well as giving you the ability to record vocals and instruments in the same room if you need to, even with a fairly heavy project.

The 3XS Sofa System uses a Fractal Design case with sound dampened steel panels on the Front, Sides and top of the unit. The case’s stock fans are replaced with a pair of our top performing 140mm fans, the BeQuiet Silent Wings 3, moving air from the front to the rear of the case, so what little fan noise remains is directed away from your work area. This combination, together another silent wings 3 fan fitted on the Dark Rock Pro 4 cooler maintains the best performance to noise ratio that we can achieve. The system should be almost inaudable at low track counts, with the fans gradually ramping up as the processor load increases, with them maximising the cooling when exporting your final mix.

On top of this, the two drives are both solid state and silent and the graphics card is silent in DAW applications, which you can find out more below.

Connectivity

3XS - 'Sofa System'

I/O Connections for your peripheralsWith the inclusion of the ASRock Thunderbolt expansion card, offering dual 40Gb/s thunderbolt 3 ports it opens up the option of using one of the top performing audio interfaces such as the Universal Audio Apollo X, PreSonus Quantum or RME UFX+. There are also 6 10Gb/s USB 3.2 gen 1 ports on the rear panel with additional 4 USB-A and a USB-C port on the top panel offering a wealth of connections for all of your studio gear.

Networking connectivity includes both gigabit ethernet and dual band Wi-Fi and for additional internal expansion there is also a free PCIe 4.0 16x slot and two PCIe 4.0 1x slots are accessible.

3XS - 'Sofa System'

Graphics

3XS - 'Sofa System'

Display screens and connectionsThe Gigabyte GTX 1650 Super graphics card is also optimised for noise levels, with it being silent and passively cooled in DAW and other non graphics heavy applications, but with the power at its fingertips if you need to edit video footage or produce visual effects.

It’s windforce fans rotate in opposite directions to reduce turbulance and increase heat dispersion efficincy so are best in class for noise when you do require graqphics power. This can support multiple 4K monitors, with 3 dsiplayport 1.4 outputs plus HDMI 2.0b. One displayport output can also be sent over thunderbolt via the rear panel input.

Optimisation

Optimzed for AudioAll of our audio systems are optimized in both the BIOS and Windows itself in order to ensure you get the best from your system. The core of this optimization is minimising DPC (Deferred Procedure Call) latency, which is a measurement of how long it takes for your audio to gain access to and then fully process your ASIO audio buffer.

Windows itself allows up to a 1000μs (microseconds) for each driver to process a cycle, whereas audio requirements state that we need the entire stack of software to process in less than 1000μs. This means if we have 20 plus programs and drivers looking to run, then anything that is poorly implemented may cause us problems, possibly manifesting as an audio overloading causing audio to break-up far earlier than it otherwise should.

All of our audio systems receive extended testing before leaving the factory, specifically testing them for possibility of CPU overloading and ensuring that you have plenty of overhead for your projects.

Compatibility

Studio testedThe models found in our ready to ship series are configured to ensure the widest compatibility possible with common studio software programs and to ensure the smoothest of experiences when running your studios crucial studio applications. During this initial validation phase, we test with all the popular audio sequencers including industry leaders such as Cubase, Pro Tool, Sonar, Studio One, Ableton, Bitwig, Reaper and FL Studio in order to ensure the widest compatibility straight out of the box.

This means that once you receive your system, you will be able to set it up along with your audio interface & software of choice and be ready to go with the absolute minimum of fuss.

Confidence

Scan tested and guaranteedWe build thousands of systems every year, and we are confident that our reputation speaks for itself. You will find reviews of our systems in many popular publications both online and in print.

The 3XS Sofa System is pre-built and ready to ship for next-day delivery and comes with Windows 10 Home preinstalled and a premium 3-year warranty.

Specs

Chassis Fractal Design Define 7
Motherboard ASRock ASRock X570 Taichi
Processor AMD Ryzen™ 9 5950X CPU OEM
CPU Cooler be quiet! Dark Rock PRO 4
Memory 32GB Corsair Vengeance LPX 3600MHz DDR4
Graphics Card 4GB Gigabyte GTX 1660 Super
Power Supply RM650x Seasonic Prime 650w - 80PLUS Gold
System Drive 500GB Samsung 970 EVO PLUS M.2 NVMe SSD
Project Drive 2TB Crucial MX500 SSD
Operating System Microsoft Windows 10 Home 64bit
Recovery Media Recovery USB drive with system image and diagnostic software

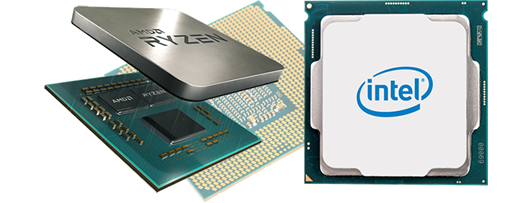

Processors to Power your PC

4K Recording

The CPU choice for your system is another important decision for your recording setup, as this where your processing performance comes from when it comes to writing and recording music. Audio handling works on a buffer system where the data is captured in a regular cycle and passed over to the CPU to carry out the important work, meaning that as long as everything is processed before the next buffer fills up then everything great.

When the CPU fails to completely process all that data before the next buffer fills up, this is when we experience crackling in our audio signal. The general advice has always been that fast cores are important for audio work and to a degree this is very true, although once we have a number of chips running at roughly the same speed, then it switches to having more cores being better as that means that you can handle more channels overall.

Modern D.A.W software tends to be able to handle an ever growing number of cores with even the most basic of programs now being able to handle 12 cores (24 threads) and the vast majority of them can effectively manage 16 cores (32 threads) without issue. It is always worth checking what your D.A.W software of choice can handle effectively, as this will allow you to optimize best choice in matching your hardware to your software’s abilities.

Here in Scan we test and compare our available CPUs using the DAWBench testing suite, so we can understand the performance differences between these chips. You may not always need the highest performing machine in the range and for many smaller acts working largely with audio and perhaps only a few dozen channels may find one of our entry-level machines extremely effective for the task in hand.

The DAWBench DSP chart below shows the result of adding multiple instances of the SGA 1566 effect, stacked on a project until the audio starts to crackle as the CPU begins to overload. This gives us a baseline metric to compare the CPU’s against each other and a rough guide to how each system will compare against other solutions. We measure at a number of buffer settings using our RME Babyface so that you can see how it may handle in both low latency-recording situations, as well as more relaxed buffer settings that you might use whilst mixing.

The DAWBench DSP chart shows the result of adding multiple instances of the SGA 1566 effect stacked on a project until the audio starts to crackle as the CPU overloads. It gives us a baseline metric to compare the CPU’s against each other and a rough guide to how the system will compare against other solutions. We measure at a number of buffer settings using our RME Babyface so you can see how it may handle in both low latency-recording situations and more relaxed buffer settings you may use whilst mixing.

Click image to enlarge

Why Buy Built?

4K Recording

PROFESSIONALLY BUILT PCS VS SELF-BUILTAnyone can build a PC, so what really makes the difference between any old PC and a 3XS PC? For starters, our team has been designing and building PCs for more than 20 years, so we have a huge amount of experience in building highly reliable systems that deliver the most performance for your budget. These are the benefits you receive when buying a professionally built 3XS system versus building a system yourself.

No Compatibility Headaches

4K Recording

It can take weeks to research the right combination of components, not just to ensure you get the most bang for your buck but to minimise the chance of one component being incompatible with another. Whether you buy a system from our configurator or a custom spec system our engineers will do all this hard work for you, ensuring that when your system is delivered it performs flawlessly.

Intensively Tested

4K Recording

Building a PC only takes a few hours, but installing all the software and making sure that everything is configured properly and that your software runs stably takes up a huge amount of time. By ordering a 3XS system our engineers take this painful process away, as all our systems undergo a strenuous Quality Control procedure which includes updating Windows, installing the latest drivers and motherboard BIOS. Overclocked systems receive an additional 24 hour burn-in test to ensure stability.

Peace of Mind

Unfortunately PC components do occasionally fail, and when this happens if you’ve built your PC yourself you’re on your own. However, with a professionally built Scan 3XS system you’re no longer alone. Our technical support team is available 7 days a week, from 9am to 10pm Mon - Fri, 10am to 6pm on Saturdays and 10am to 4pm on Sundays. Click here for more info on how to get technical support for your 3XS system.

4K Recording

If our support team is unable to fix your system remotely and it’s still under warranty we’ll either send out an engineer to visit your home or office or repair it or have it repaired in our state of the art factory in Lancashire.

A Work of Art

4K Recording

We don't just build PCs in our state-of-the-art factory, we craft them. For instance, we route and tidy all the cables around the sides of the case. This not only makes your PC look great and easier to upgrade in the future, but eases airflow through the case resulting in a cooler and quieter PC.

In addition, we can customise your PC for you, not just the components inside but also its appearance, so if you fancy a PC in an unusual shape or colour we look forward to hearing from you.

Widely Acclaimed

4K Recording

Our 3XS PCs have won hundreds of awards in the press from publications such as Custom PC, Develop3D, Expert Reviews, HEXUS, PC Gamer and PC Pro. In addition 3XS has won Custom PC’s annual Dream PC competition every year it has run since 2007. You can read all our reviews here plus customer reviews on the configurator.

Rapid Delivery

4K Recording

Sometimes you just need a system right now. Maybe your existing system has kicked the bucket or you’ve found that your old workhorse can’t cope with the latest game or application you just bought. F-series systems are pre-built and tested in our factory, so can be collected same day or delivered next-day to your home or office.

Warranty & Technical Support

4K Recording

Another key difference is that all Scan 3XS Custom Series PCs are covered by our Premium 3 Year Warranty. This means that if your system develops a fault in its first year we can send an engineer to your home or office to repair it. In the remaining two years of the warranty we'll still repair or replace any faulty parts, but do this from our state of the art factory in Lancashire. Click here for more info on how to get technical support for your 3XS system.

Specifications
Processor
CPU Type AMD Ryzen™ 9
CPU Model 5950X
Professionally Overclocked No
CPU Speed 3.4 GHz
CPU Boost/Turbo Speed 4.9 GHz
CPU Overclock Speed
CPU Cores 16 Core
CPU Threads 32
CPU Cooler Air Cooler (Heatsink + Fan/s)
Motherboard
Motherboard Chipset AMD X570
Motherboard Form Factor ATX
RAM Memory
Memory 32GB
Memory Type DDR4
Memory Speed DDR4 - 3600(OC)
Empty DIMM Slots 2 Slots
Graphics
Graphics AMD
Graphics Chipset AMD Radeon™ RX Series
GPU Cores/Streams
GPU Core Clock
GPU Boost Clock
GPU Memory 4GB
GPU Memory Type DDR4
GPU Memory Clock
Memory Bit Rate
Maximum Supported Displays 4 Displays
Storage Drives
SSD Boot Drive Installed Yes
SSD Boot Drive Type M.2 PCIe (NVMe)
SSD Boot Drive Capacity 500 GB
Hard Drive Installed No
Hard Drive Type
Hard Drive Capacity 2000 GB
Maximum 2.5" Bays
Maximum 3.5" Bays
Additional Specifications
Operating System Windows 10 Home (64 bit)
Wireless LAN Yes
PSU Wattage 650 W
Colour Black
Case Form Factor Mid Tower
Dimensions (Tower)
Optical Drive DVD±RW
Benchmarks
Latency Monitor
DAWbench DSP
DAWbench VI
I/O

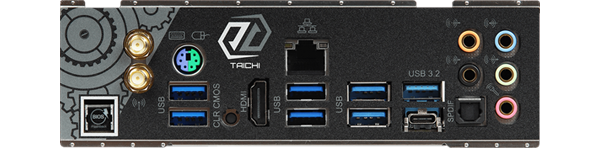

Back Panel
  • 1 x 10/100/1000 (LAN)
  • 1 x 10GbE RJ45
  • 1 x 5.1 Audio I/O
  • 1 x DisplayPort IN for Thunderbolt™ 3
  • 1 x PS/2 Keyboard/Mouse Combo
  • 1 x S/PDIF (Optical)
  • 2 x Thunderbolt 3
  • 6 x USB 3.2 Gen2 Type-A
  • 2 x WiFi Antenna connectors

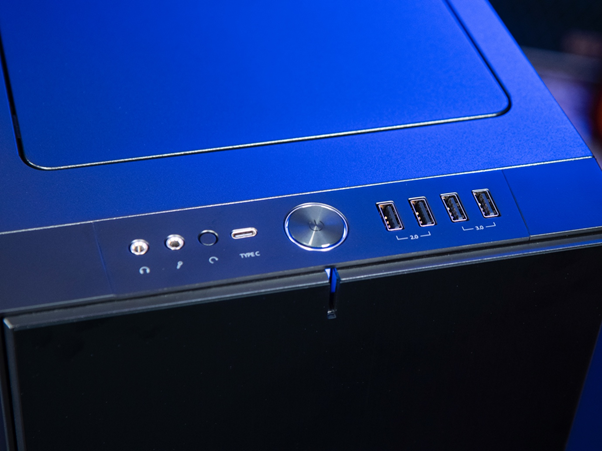

Front / Side Panel
  • 1 x Power Switch with LED
  • 1 x Reset Button
  • 2 x USB 2.0
  • 2 x USB 3.1 Type-A
  • 1 x USB 3.1 Type-C
Additional Information
Scan Code LN110793
Model Number DLR X570 Audio Workstation
