SYSTEM
Scan code: LN114543 Manufacturer code: GWP-ME-N1-32T

3XS GWP-ME N1-32T

3XS GWP-ME N1-32T, AMD Threadripper 3970X, 128GB DDR4, 48GB NVIDIA Quadro RTX A6000, 2TB M.2 SSD, 4TB SSD, Win 10 Pro

Thumbnail 1 : 3XS GWP-ME N1-32T
3XS GWP-ME N1-32T : image 1
Scan code: LN114543 Manufacturer code: GWP-ME-N1-32T
£8,999.99
Low stock
Order now and get it tomorrow, Wed 27th Oct
Delivery Options
  • By DPD On 27th Oct to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

PLEASE NOTE We have all the necessary components required to build your system in stock. However due to demand and our current volume of orders, it will take 25 to 30 working days to build and dispatch your system. Orders will be fulfilled in a queue in a first-come-first-served basis.

Scan 3XS Graphics Workstations

NVIDIA RTX studio logo

Scan 3XS Graphics Workstations are based on the Ampere-architecture NVIDIA RTX GPUs, providing you with maximum performance and stability when working your favourite M&E (Media & Entertainment) applications.

This workstation features a 48GB NVIDIA RTX A6000 graphics card with a 32C/64T AMD Ryzen Threadripper 3970X processor plus 128GB of DDR4 memory. An ultra-fast 2TB SSD is provided for the OS and your latest project plus a 4TB SSD for storing assets and documents. The system is built in a sleek mid tower case with quiet fans ensuring a superior user experience.

The system is soak tested with creative applications and is pre-installed with Windows 10 Professional.

AEC Logo

'With the new Nvidia RTX A6000 GPU and AMD Ryzen Threadripper CPU, this workstation beast has the power to deliver in a whole range of design viz workflows' AEC Magazine, February 2020

Optimised for M & E Applications

This workstation is optimised for M&E workflows in applications such as 3DS Max, Maya, Illustrator, Resolve, Premier Pro and After Effects

Autodesk
Autodesk
illustrator
Davinci resolve
premierepro
aftereffects

How does NVIDIA RTX Benefit Me?

NVIDIA RTX technology provides three main benefits for content creators in 40+ enabled applications.

ray tracing
RT CORES ENABLE HARDWARE ACCELERATED RAY TRACING
ai workflow
TENSOR CORES ACCELERATE AI WORKFLOWS
rendering
CUDA CORES / NV ENCODER FOR RENDERING AND VIDEO PROCESSING

Key Features

Quadro
NVIDIA Graphics

An NVIDIA RTX A6000 graphics card ensures outstanding performance and have ISV-certified drivers in hundreds of M&E applications.0.

Threadripper
AMD RYZEN PROCESSOR

The AMD Ryzen 9 3950X has 16 cores and 32 threads for great performance in a wide variety of high-performance applications.

Cuda
NVIDIA CUDA

Boasting 10752 CUDA Cores which allows for brilliant performance in CUDA based applications

Specifications

Component Description

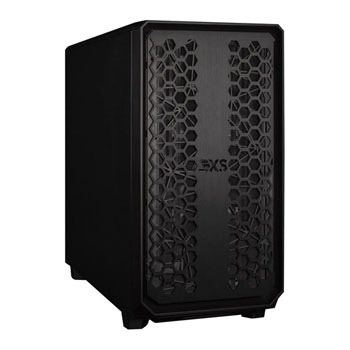

Chassis Fractal Design Meshify 2 with 3XS Custom Front Panel
Motherboard ASUS PRIME TRX40-PRO-S
Processor AMD Ryzen Threadripper 3970X, 32C/64T, 3.7GHz – 4.5GHz
CPU Cooler NZXT Kraken Z73
Memory 128GB Corsair Vengeance LPX 3600MHz DDR4
Graphics Card 48GB NVIDIA RTX A6000
Power Supply Corsair RM1000i - 80PLUS GOLD
System Drive 2TB WD Black SN850 PCIe 4.0 NVMe M.2 SSD
Storage Drive 4TB Samsung 870 EVO SSD
Operating System Microsoft Windows 10 Pro 64bit
Recovery Media Recovery USB drive with system image and diagnostic software

Connectivity

USB

6 x USB 2.0
2 x USB 3.0
7 x USB 3.2 Gen2 Type-A
2 x USB 3.2 Gen2 Type-C

Display

4 x DisplayPort 1.4a

Ethernet

Intel Gigabit LAN
Realtek 2.5 Gigabit LAN

Wi-Fi

Intel WiFi 6
Intel Bluetooth 5

Why buy a 3XS Workstation

Anyone can build a PC, so what really makes the difference between any old PC and a 3XS PC? For starters, our team has been designing and building PCs for more than 20 years, so we have a huge amount of experience in building highly reliable systems that deliver the most performance for your budget. Here are the key reasons to buy a 3XS Workstation.

7 Days Support 7 Days Support

Our engineers are available 7 days a week to help with any queries.

FIND OUT MORE
Awards and Reviews Trusted by you

3XS Systems have won hundreds of awards in the media.

VIEW ALL REVIEWS
Next-day Delivery Next-day delivery

3XS Workstations are pre-built and tested in our factory to be delivered next-day.

VIEW NEXT-DAY PCs
3 Year Warranty 3 years warranty

3XS Workstations include a three-year warranty, so if anything goes faulty we’ll repair or replace it.

FIND OUT MORE
Returns 30 Day return Policy

If you’re not totally satisfied with your 3XS Workstation you can return it up to 30 days after delivery.

FIND OUT MORE
Specifications
Processor
CPU Type AMD Ryzen™ Threadripper
CPU Model 3970X
Professionally Overclocked No
CPU Speed 3.7 GHz
CPU Boost/Turbo Speed 4.5 GHz
CPU Overclock Speed
CPU Cores 32 Core
CPU Threads 64
CPU Cooler All-In-One Water Cooler
Motherboard
Motherboard Chipset AMD TRX40
Motherboard Form Factor ATX
RAM Memory
Memory 128GB (8x16GB)
Memory Type DDR4
Memory Speed DDR4 - 3600(OC)
Graphics
Graphics NVIDIA
Graphics Chipset NVIDIA RTX A6000
NVLink/SLi/CrossFire Multi GPU System No
Real-Time Ray Tracing Yes
VR Ready Yes
GPU Cores/Streams 10752
GPU Core Clock
GPU Boost Clock
GPU Memory 48GB
GPU Memory Type GDDR6
GPU Memory Clock
GPU Memory Bit Rate
Graphics Card Connectors 4 x DisplayPort 1.4
Storage Drives
SSD Boot Drive Installed Yes
SSD Boot Drive Type M.2 PCIe (NVMe)
SSD Boot Drive Capacity 2000 GB
Hard Drive Installed No
Hard Drive Type
Hard Drive Capacity N/A
Additional Specifications
Operating System Windows 10 Pro (64 bit)
Wireless LAN Yes
PSU Wattage 1000 W
Colour Grey
Case Form Factor Mid Tower
Dimensions (Tower) 240 x 475 x 547 mm (WxHxD)
Optical Drive None
Benchmarks
3DMark Overall
3DMark GPU
3DMark CPU
Cinebench R20 Multi Thread
Cinebench R20 Single Thread
CrystalDiskMark 7.0 Read
CrystalDiskMark 7.0 Write
Metro Exodus 1080p
Metro Exodus 1440p
Shadow of the Tomb Raider 1080p
Shadow of the Tomb Raider 1440p
Red Dead Redemption II 1080p
Red Dead Redemption II 1440p
CS:GO 1080p
CS:GO 1440p
Fortnite 1080p
Fortnite 1440p
COD Warzone 1080p
COD Warzone 1440p
I/O
Back Panel
  • 1 x 10/100/1000 (LAN)
  • 1 x 10/100/1000/2500 (LAN)
  • 1 x Mic-In
  • 1 x S/PDIF-Out (Optical)
  • 4 x USB 2.0
  • 7 x USB 3.2 Gen2 Type-A
  • 1 x USB 3.2 Gen2 Type-C
  • 1 x USB BIOS Flashback Button
  • 2 x WiFi Antenna connectors
Front / Side Panel
  • 1 x Headphone Out
  • 1 x Mic In
  • 1 x Power Button
  • 1 x Reset Button
  • 2 x USB 2.0
  • 2 x USB 3.0
  • 1 x USB 3.1 Gen2 Type-C
  • 1 x USB 3.2 Gen2 Type-C
