SYSTEM
Scan code: LN112710 Manufacturer code: BFDX500

AMD Ryzen 9 Audio Workstation

3XS Audio Workstation, AMD Ryzen 9 5900X, 16GB DDR4, 500GB M.2 SSD, 1TB SATA SSD, 8GB 5500XT GPU, Win 10

Thumbnail 1 : AMD Ryzen 9 Audio Workstation
AMD Ryzen 9 Audio Workstation : image 1
Scan code: LN112710 Manufacturer code: BFDX500
£1,649.99Item currently awaiting an ETA
Pre order
FREE DELIVERY ON THIS ITEM
Delivery Options
  • By DPD to your specified address. | Free Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

NVIDIA RTX promotion

3XS Ryzen 9 Studio

Our 3XS Ryzen 9 Studio system is based around the latest AMD "Zen 3" CPU, with this model featuring a 12C/24T Ryzen 9 5900X running on a B550 motherboard to offer the best value combination.

The system has 16GB of Corsair memory included, which we find is ample for a lot of production duties carried out on this level of machine. We do however ensure that we leave you with two additional memory slots free, just so that if you wish to expand further in the future then you will have an easy upgrade route ready and waiting.

We also include a superfast NVMe SSD drive for your Windows OS installation, which means that you should also have plenty of space in which to setup your sequencer of choice as well as all of your plugins. Alongside that OS drive, we fit an additional 1TB Samsung SATA SSD for general storage and your sample libraries. Should you also wish to migrate over your old project drives or if you wish to ensure that you have additional storage expansion options in the future, then rest assured that the case in this system has 7 more 2.5” and 3 more 3.5” drive bays making it certain to be able to accommodate any future storage expansion that you may wish to carry out.

As with all of our studio-based systems, the performance to noise level is a key concern, where we always strive to ensure we get the maximum amount of performance with the least amount of disruptive system noise through careful component consideration. 3XS represents the last word in quality and reliability. We build thousands of bespoke systems every month and we are confident that our reputation speaks for itself. You will find reviews of our systems in many popular publications both online and in print.

The 3XS Ryzen 9 Studio is pre-built and ready to ship for next-day delivery and comes with Windows 10 Home pre-installed and a premium 3-year warranty.

Key Features

Intel CPU
AMD PROCESSOR

CPUs handle the sound generation and audio processing, making both a high clock speed & core count important.

CINEBENCH R20
LATENCY TESTED

System responsiveness is important for achieving the best recording experience.

CINEBENCH R20
ASIO READY

Tested and optimized for your D.A.W software and pro-audio hardware.

CINEBENCH R20
Quiet Components

High quality cooling components are chosen to ensure a low noise profile.

CINEBENCH R20
Multi Monitor Support

This system supports up to 4 monitors to boost productivity.

Specifications

Component Description

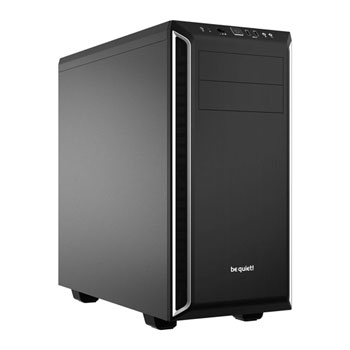

Chassis be quiet! Pure Base 600
Motherboard ASUS PRIME B550-PLUS
Processor AMD Ryzen 9 5900X, 12C/24T, 3.7GHz - 4.8GHz
CPU Cooler be quiet! Dark Rock Slim
Memory 16GB Corsair Vengeance LPX 3600Hz DDR4
Graphics Card AMD Radeon RX 5500 XT DUAL EVO OC
Power Supply 650W Seasonic Focus GX-650 – 80PLUS GOLD
System Drive 500GB Seagate Firecuda 520 NVMe M.2 SSD
Storage Drive 1TB Samsung 860 EVO SATA SSD
Operating System Microsoft Windows 10 Home 64bit
Recovery Media Recovery USB drive with system image and diagnostic software

Connectivity

USB

2 x USB 2.0
2 x USB 3.0
4 x USB 3.2 Gen1 Type-A
1 x USB 3.2 Gen2 Type-A
1 x USB 3.2 Gen2 Type-C

Display

3 x DisplayPort 1.4
1 x HDMI 2.0b

Ethernet

Realtek 2.5 Gigabit LAN

Why buy a 3XS Audio Workstation?

Anyone can build a PC, so what really makes the difference between any old PC and a 3XS PC? For starters, our team has been designing and building PCs for more than 20 years, so we have a huge amount of experience in building highly reliable systems that deliver the most performance for your budget. Here are the key reasons to buy a 3XS Video Workstation.

7 Days Support 7 Days Support

Our engineers are available 7 days a week to help with any queries.

FIND OUT MORE
Awards and Reviews Trusted by you

3XS Workstations have won hundreds of awards in the media.

VIEW ALL REVIEWS
Next-day Delivery Next-day delivery

3XS Workstations are pre-built and tested in our factory to be delivered next-day.

VIEW NEXT-DAY PCs
3 Year Warranty 3 years warranty

3XS Workstations include a three-year warranty, so if anything goes faulty we’ll repair or replace it.

FIND OUT MORE
Returns 30 Day return Policy

If you’re not totally satisfied with your 3XS Workstation you can return it up to 30 days after delivery.

FIND OUT MORE
Specifications
Processor
CPU Type AMD Ryzen™ 9
CPU Model 5900X
Professionally Overclocked No
CPU Speed 3.7 GHz
CPU Boost/Turbo Speed 4.8 GHz
CPU Overclock Speed
CPU Cores 12 Core
CPU Threads 24
CPU Cooler Air Cooler (Heatsink + Fan/s)
Motherboard
Motherboard Chipset AMD B550
Motherboard Form Factor ATX
RAM Memory
Memory 16GB (2x8GB)
Memory Type DDR4
Memory Speed DDR4 - 3600(OC)
Empty DIMM Slots 2 Slots
Graphics
Graphics AMD
Graphics Chipset Radeon RX 5500 XT
GPU Cores/Streams 2304
GPU Core Clock 1375 MHz
GPU Boost Clock 1560 MHz
GPU Memory 8GB
GPU Memory Type GDDR6
GPU Memory Clock 14000 MHz
Memory Bit Rate 192 Bit
Maximum Supported Displays 4 Displays
Storage Drives
SSD Boot Drive Installed Yes
SSD Boot Drive Type
SSD Boot Drive Capacity 500+1000 GB
Hard Drive Installed No
Hard Drive Type
Hard Drive Capacity
Maximum 2.5" Bays 8 Bays
Maximum 3.5" Bays 3 Bays
Additional Specifications
Operating System Windows 10 Home (64 bit)
Wireless LAN No
PSU Wattage 650 W
Colour Black
Case Form Factor Mid Tower
Dimensions (Tower) 220 x 470 x 492 (WxHxD)
Optical Drive
Benchmarks
Latency Monitor
DAWbench DSP
DAWbench VI
I/O
Back Panel
  • 1 x 10/100/1000/2500 (LAN)
  • 1 x BIOS Flashback Button
  • 1 x Central Speaker Out
  • 1 x DisplayPort
  • 1 x HDMI
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x Rear Speaker Out
  • 1 x S/PDIF-Out (Optical)
  • 2 x USB 2.0
  • 4 x USB 3.2 Gen1 Type-A
  • 1 x USB 3.2 Gen2 Type-A
  • 1 x USB 3.2 Gen2 Type-C
Front / Side Panel
  • 1 x 3-pin Fan Controller
  • 1 x HDD Activity LED
  • 1 x Headphone Out
  • 1 x Mic In
  • 1 x Power Button
  • 1 x Reset Button
  • 2 x USB 3.0
Additional Information
Scan Code LN112710
Model Number BFDX500
GTIN 5055948922803
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Return to base
DOA Period:
7 days
RTB Period:
36 months
