Scan code: LN93389 Manufacturer code: CSSD-F240GBMP510

CORSAIR MP510 240GB 3D Performance NVMe PCIe M.2 SSD

240GB Corsair MP510, M.2 (2280) PCIe 3.0 (x4) NVMe 3D TLC SSD,3100MB/s Read,1050MB/s Write, 180k/ 240k IOPS

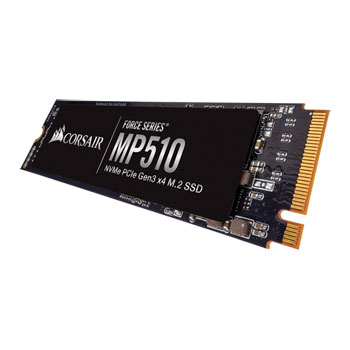

Thumbnail 1 : CORSAIR MP510 240GB 3D Performance NVMe PCIe M.2 SSD
CORSAIR MP510 240GB 3D Performance NVMe PCIe M.2 SSD : image 1
Scan code: LN93389 Manufacturer code: CSSD-F240GBMP510
Order now and get it tomorrow, Wed 20th Oct
Delivery Options
  • By DPD On 20th Oct to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info
Frequently Bought Together

240GB CORSAIR Force Series MP510 Solid State Drive

MP510 240GB SSD

Equipped with high-density 3D TLC NAND

The CORSAIR Force Series™ MP510 is a premium SDD that combines the latest 3D TLC NAND technologies to provide an incredible performance. This drive in particular has a storage capacity of 240GB, with ultra-fast read and write speeds, which deliver fast system boot times and less load times. With the amazing performance you can guarantee long-term reliability with a 5 Year CORSAIR warranty and with the SSD Toolbox Software you get access to advanced drive controls from your desktop, including secure erase and firmware updates. Whether you’re playing games, editing images or creating videos, it’s time to upgrade to NVMe if you want to go faster.



PCIe 3.0

Sequential Read

Sequential Write

Random Read

Random Write

Exceptional Transfer Speed and Plenty of Capacity

The CORSAIR Force Series™ MP510 SSDs deliver high performance, quick system boot ups, blazing fast transfer speeds and ultimate reliability in a compact form factor.

Other Solid State Drives in the Corsair MP510 range:

480GB 960GB 1.9TB

Extreme Storage Performance


Superior Performance and Endurance

The CORSAIR Force MP510 is the all-new extreme data performance controller delivering up to 3,480MB/sec sequential read, and up to 3,000MB/s sequential write, for blazing fast read, write and response times.

High-Density 3D TLC NAND


Superior Performance & Endurance

The MP510 SSD is perfect for laptops or small form factor desktop PCs, the latest NAND technology allows the MP510 to perform exceptionally. Offering users the ideal mix of performance, endurance and value to keep your drive performing at its best for years.

Compact. Simple Connection. Performance.


M.2 Form FactorUltra-compact M.2 (2280) size fits directly into your notebook or motherboard with no additional cables or connectors.


High Speed NVMeFor simple connection and maximum bandwidth, high-speed NVMe PCIe Gen 3 x4 M.2 Interface.


5 Year WarrantyComprehensive 5-Year Corsair warranty, long-term reliability and industry-leading customer support for peace of mind.

Capacity 240GB
Edition MP510
Form Factor M.2 (2280)
Height 3 mm
Interface PCIe 3.0 (x4)
Host Controller Interface NVMe 1.3
Flash Memory Type None
Max. Read 3100 MB/s
Max. Write 1050 MB/s
DRAM Cache Memory N/A
DRAM Cache Memory Type Low Power DDR3 SDRAM
Max. Random Read 4K 180 IOPS
Max. Random Write 4K 240 IOPS
Latency N/A
Special Features
  • Bad Block Management
  • Dynamic Wear-Leveling
  • Garbage Collection
  • Static Wear-Leveling
  • TRIM Support
Power Consumption (active) 6.1W
Max. Endurance Rating 400 TBW
MTBF 1,800,000 Hours
Max. Operating Vibration 20 Hz~80 Hz/1,52 mm
Max. Non-operating Vibration 20 Hz~80 Hz/1,52 mm,
Max. Operating Shock 1500G
Max. Non-operating Shock 1500G
Connectivity 1 x M.2 (PCIe)
OS Support
Bracket N/A
Dimensions 80mm x 22mm x 3mm mm (WxHxD)
Weight 0.0082 g
Package Type Retail
Additional Information
Scan Code LN93389
Model Number CSSD-F240GBMP510
GTIN 843591024334
