120TB NVMe over Fabric Storage Appliance

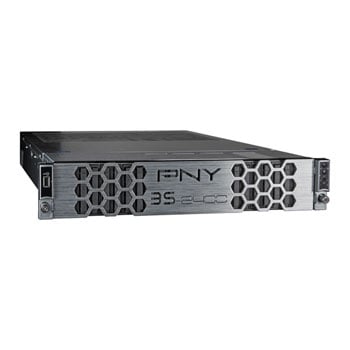

120TB PNY 3S-2400P Deep Learning Storage Appliance
to your specified address. |
Receive SMS with one-hour delivery window
Weekend, timed and European delivery options are available at checkout
Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery windowWeekend, timed and European delivery options are available at checkout
Collect from our Bolton store, BL6 6PE |
Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)
AI Optimised Storage For Deep Learning Acceleration
Maximizing GPU usage of your DGX systems throughout your AI journey
NVIDIA’s DGX range has helped shape the AI landscape and changed future possibilities. However, the DGX range has limited internal space for NVMe flash storage, an essential element for performance and overall capability.
PNY 3S-2400 AI Optimised Storage Server creates a central pool of ultra-low latency NVMe which can be shared amongst one or multiple DGX servers. Providing each DGX with the ideal level of resource without the need for upfront over investment.
Simply connected via NVIDIA compatible EDR InfiniBand / 100Gbe, the unique RDMA protocol ensures the NVMe resource is seen and performs as if it were internal to the DGX.
Benefits of AI Optimised Storage
30% FASTER TRAININGReal life deep learning projects show a massive 30% improvement in training times when compared to other solutions.Excellent performance with the standard storage synthetic benchmarks, with bandwidth, latency and IOPS, leaving others behind.
50% LOWER COSTCost and affordability are a key design focus. By removing the need for expensive storage controllers, costs are dramatically reduced, and more of your investment is spent on GPU and NVMe resource providing greater productivity and ROI.
100% SCALABILITYWith Scale-UP and Scale-OUT, both capacity and performance are not limited. Regardless of where you start, scaling is simple, fast and on demand.Providing a future proof solution and benefiting from the lowering trend of flash costs.
Blistering Performance for AI Workflows
Ensuring your project’s funds are better spentToday’s AI servers consume and analyse data at much higher rates than traditional storage solutions an deliver. Resulting in low GPU utilisation and dramatically extending training times as well as decreasing productivity. PNY 3S-2400 has been developed from the ground up for AI workloads and NVIDIA DGX optimisation. Delivering ultra-low latency and tremendous bandwidth at a price which allows more investment to be made on GPU resource and less on expensive, slower storage.
NVMe over Fabric Low Latency Storage
Excelero delivers low-latency distributed block storage for web-scale applications. NVMesh enables shared NVMe across any network and supports any local or distributed file system. The solution features an intelligent management layer that abstracts underlying hardware with CPU offload, creates logical volumes with redundancy, and provides centralised, intelligent management and monitoring.
Applications can enjoy the latency, throughput and IOPs of a local NVMe device with the convenience of centralised storage while avoiding proprietary hardware lock-in and reducing the overall storage TCO. NVMesh features a distributed block layer that allows unmodified applications to utilize pooled NVMe storage devices across a network at local speeds and latencies. Distributed NVMe storage resources are pooled with the ability to create arbitrary, dynamic block volumes that can be utilised by any host running the NVMesh block client.
Start Small. Scale Only When Needed
Help your team be more productive by taking full advantage of the DGX capabilityUnlike most storage solutions where the initial investment dictates future growth and performance, often resulting in the need to overspend for potential future growth.
PNY’s NVmesh design can scale in stages to suit your project without any limitation. Just purchase the capacity and performance you need today and feel secure that as you scale, so can your capacity and performance.
Enhanced Fault Tolerance
The special 3S-2400P series models provide enhanced fault tolerance compared to the standard 3S-2400 models.
The configuration is based upon Erasure Coding, a scalable RAID-Like protection which provides various levels of resilience. The recommended configuration, including any additional scale-out units, is x + 2, meaning x data drives and 2 parity drives. In this configuration the data and parity are distributed in blocks and not just on one drive.
For example, with 12x 15TB drives a single S3-2400P unit has a raw capacity of 180TB.
However, with Erasure Coding Protection enabled and the equivalent of 2 drives’ capacity being used for Parity the useable capacity drops to 150TB. This is just one example of the many configurations supported by the 3S-2400P. Our technical team can advise on the optimum configuration for your requirements and budget.
Flexible Design with Flexible Solutions
|Example Solution||32TB 3S-2400||120TB 3S-2400P||2x 180GB 3S-2400P|
|Drives||4 x 8 TB||8 x 15 TB||24 x 15 TB (12 per node)|
|Capacity||32 TB||120 TB raw or 90 TB RAID 6||360 TB raw or 300 TB RAID 6|
|Max Capacity||192 TB (24 Drives)||360 TB (24 drives)||720 TB (48 drives)|
|Latency||‹ 100 µS||‹ 100 µS||‹ 100 µS|
|Bandwidth Max||12 GBsec (4 drives)||23 GBsec||46 GBsec|
|IOPS||2 million||4 million||8 million|
|Resnet50 Benchmarks (256)||6500 IMGsec* (based on single DGX1)||13000 IMGsec* (based on two DGX1s)||26000 IMGsec* (based on four DGX1s)|
|Connectivity||2 x Independent EDR InfiniBand/100Gbe||2 x Independent EDR InfiniBand/100Gbe||4 x Independent EDR InfiniBand/100Gbe|
|NVMesh HW||RAID 0, 1||RAID 0, 1||RAID 0, 1, 10, 5**, 6**|
*6500IMGsec is the maximum efficiency for a DGX1. Additional DGX’s will increase the results
**RAID5 and RAID6 based upon 15TB configurations, available in single or multiple nodes
TAILORED RESILIENCERegardless of your resilience needs, PNY 3S-2400 storage server will maintain ulta-low latency and high performance for AI / DL workflows. Resilience options range from RAID0 to full mirrored solutions with No Single Point of Failure.
TECHNICAL SUPPORTWith 24/7 support and a range of on-site options, you can choose the package most effective for your organisation or project.
|Storage Capacity||120TB per node|
|Connectivity||2 x QSP28 EDR Inifinband /100Gb/s Ethernet|
|Power||Hot-swap redundant PSUs|
|Form Factor||2U, 710mm deep|
|Installation & Configuration||Customisable to your requirements|
|Excelero Software License||3 years. 5-year license available on request.|
|Support||3 years 24/7 Premium Support
5-year support contact available on request.
|CPU Type||2nd Gen. Intel Xeon Scalable Processors|
|Architecture||Cascade Lake-SP (Purley)|
|No. of Threads||N/A|
|Motherboard Form Factor|
|Memory Type||DDR4 ECC Registered|
|Memory Capacity Included||96GB|
|Memory Type (ECC)||ECC|
|Memory Type (R/U)||RDIMM (Registered)|
|Memory Speed (Mhz)|
|Max. Memory Capacity|
|Processor/Motherboard Graphics Chip||N/A|
|Discrete GPU Chipset|
|GPU Manufacturing Process|
|GPU Cores/Streams/Execution Units|
|GPU Tensor Cores||N/A|
|Base GPU Speed||N/A|
|Max. GPU Speed||N/A|
|GPU Memory Size|
|GPU Memory Type|
|GPU Memory Clock|
|GPU Memory Bus|
|Discrete GPU Cooler|
|Max. GPU Resolution|
|HDD Storage Included||Yes|
|HDD Storage Type||U.2 NVMe|
|HDD Storage Capacity||120TB|
|Network Interface Type||2x QSFP28 100GbE InfiniBand|
|Keyboard / Mouse Included||No|
|Remote Control Included||No|
|PSU Efficiency Rating|
|Operating System Included||No|
|Dimensions||438 x 87.3 x 704.9 (mm WxHxD)|
|SSD Storage Included||No|
|SSD Storage Type|
|SSD Storage Capacity|
