Wired & Wireless
Networking Solutions

High performance server and storage systems need an equally high-performance network infrastructure to support them and ensure there are no bottlenecks that affect data throughput. Whether located within a datacentre or at the edge of the network, connectivity is key to keep systems functioning optimally. The Scan networking solutions portfolio includes Ethernet, Infiniband, wireless and 4G / 5G options to deliver best in class performance.

Network Interface Cards

Although only a small component in a server build, the network interface card (NIC) can contribute to a huge uplift in performance. From simply providing Gigabit (1GbE) connectivity from the server to the switch the modern NIC now deliver speeds up to 100GbE as well as offering many other functions such as Remote Memory Direct Access (RDMA or iWARP) and RDMA over converged Ethernet (RoCE) to provide the ability to communicate without involving the CPU, cache or operating system thus delivering much shorter latency times across the network. Our system build teams are able to upgrade NICs within a server build from a large range of Intel and NVIDIA Networking (formerly Mellanox) options.

Intel NICs

Intel’s ever evolving NIC range offers consistent reliable performance from 1GbE up to 100GbE with proven interoperability. They are optimised for use in wider Intel architecture environments, and deliver improved application efficiency and network performance when used with complex high-demand server workloads such as AI, HPC and hybrid cloud.

NIC Name Protocol Interfaces Maximum Speed Ports Host Bus RDMA (iWARP or RoCE)
800 Series Ethernet SFP28 / QSFP28 100GbE 2 / 4 PCIe 4.0
700 Series Ethernet RJ45 / SFP+ / QSFP+ / QSFP28 40GbE 1 / 2 / 4 PCIe 3.0
500 Series Ethernet RJ45 / LC Fibre / SFP28 10GbE 1 / 2 PCIe 3.0
GbE NIC Series Ethernet RJ45 / LC Fibre 1GbE 1 / 2 / 4 PCIe 3.0

NVIDIA Networking NICs

The industry-leading NVIDIA Networking (Mellanox) ConnectX family of intelligent datacentre NICs offers the broadest and most advanced hardware offloads, which enable the high throughput and the low latency for hyper-scale computing, storage, machine learning, artificial intelligence and big data platforms. Available in both Ethernet and Infiniband versions, they offer speeds of up 200GbE.

NIC Name Protocol Interfaces Maximum Speed Ports Host Bus RDMA (iWARP or RoCE)
ConnectX-7 Ethernet / Infiniband QSFP56 400GbE 1 / 2 PCIe 4.0
ConnectX-6 Ethernet / Infiniband QSFP56 200GbE 1 / 2 PCIe 4.0
ConnectX-5 Ethernet / Infiniband SFP28 / QSFP28 100GbE 1 / 2 PCIe 3.0
ConnectX-4 Ethernet / Infiniband SFP28 / QSFP28 50GbE 1 / 2 PCIe 3.0

To learn more about Ethernet and Infiniband NIC technologies click here to read our Network Card Buyers Guide.

Find out more

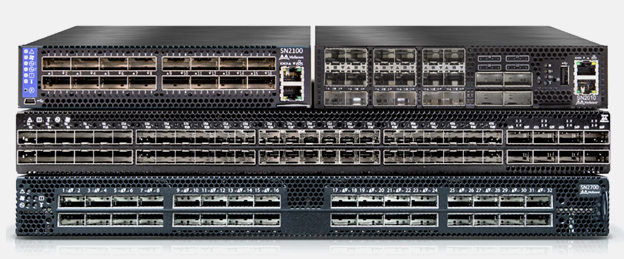

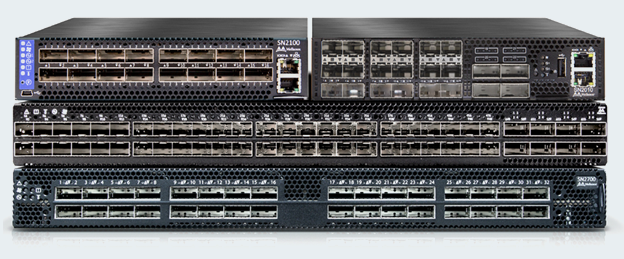

Network Switches

NVIDIA Networking provides the highest performing Ethernet and Infiniband switch families delivering speeds of up to 400GbE – designed to partner seamlessly with ConnectX NICs to ensure maximum through and eliminate bottlenecks across your network. The complete connectivity solution enables deep learning & AI, HPC, datacentre, cloud computing, and storage applications to operate at maximum functionality at any scale.

Switch Name Protocol Interfaces Maximum Speed Maximum Ports Data Throughput
SN4000 Ethernet QSFP56 / QSFP-DD 400GbE 128 25.6Tb/s
SN3000 Ethernet SFP28 / QSFP28 / QSFP56 200GbE 128 12.8Tb/s
SN2000 Ethernet SFP28 / QSFP28 100GbE 64 6.4Tb/s
QM9700 Infiniband QSFP56 400GbE 64 51.2Tb/s
QM8700 Infiniband QSFP56 200GbE 40 16Tb/s
SB7800 Infiniband QSFP28 100GbE 32 7.2Tb/s

To learn more about Network Switch technologies click here to read our Network Switch Buyers Guide.

Find out more

Wireless Access Points

Wireless network connectivity seems to be the norm these days, but when used to support critical elements of your business, it must also be reliable, consistent and fast. To guarantee this performance businesses are turning increasingly to managed solutions whereby the various access points that cover any given area are controlled by either a master wireless access point (WAP) or an external controller, thus enabling greater control. Benefits of a solution like this include improved seamless hand-off as users roam between access points, better load balancing of user access across the wireless network and enhanced security - increasing the ability to monitor and detect rogue users - either with non-compliant devices or unauthorised access.

Ubiquiti WAPs

Ubiquiti Networks provides a variety of high-performance wireless networking technology solutions for small offices, medium size business all the way up to enterprises, offering an outstanding price to performance ratio. The Unifi range of access points and controllers deliver not only scalable wireless solutions delivering the latest 802.11ac Wave2 performance, but ultimate visibility as to your environment through graphical dashboards and status updates via almost any mobile device.

Unifi WAP Name Wireless Protocol Ports Antennas
nanoHD 802.11ac Wave2 1x GbE (PoE+) 2.4GHz / 5GHz MIMO
In-wall HD 802.11ac Wave2 5x 1GbE (PoE+) 2.4GHz / 5GHz MIMO
FlexHD 802.11ac Wave2 1x GbE (PoE+) 2.4GHz / 5GHz MIMO
BaseStation XG 802.11ac Wave2 1x GbE (PoE+) 5GHz MIMO
Find out more

Airtime & Connectivity Services

To complement our range of business hardware and software portfolio Scan has added a comprehensive range of airtime connectivity offerings to deliver a complete end-to-end solution for your organisation. Including cellular, leased line and wide area network (WAN) options, we believe we can address all your business requirements.

Find out more

Professional Services

The Scan IT team has many years’ experience delivering professional services to support network infrastructure deployment. Our consultants are able to use their expertise to help your company design your network in a secure way to ensure the highest levels of business continuity. From secure network architecture and design to installation, configuration and remote monitoring, right through to disaster recovery and business continuity.

Find out more

New Network Infrastructure? Check your UPS!

It is always vital to ensure that any new infrastructure equipment remains protected by your Uninterruptible Power Supply in the event of a power failure or surge. Read our buyers guide to learn more about correct UPS sizing.

Find out more
